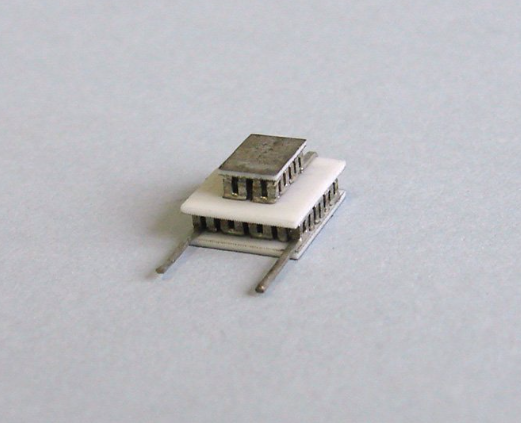

ECOGEN公司生產的一系列功能強大的小型熱電模塊，提供快速高效的冷卻，溫差高達85К，制冷能力為100瓦。
基材-氧化鋁（ВК-96）
高度公差±0.35 mm
平行度0.15 mm（L4）
平面度0.1 mm（L4）
銷方向（適用于矩形冷卻器）-向較長一側
工作溫度高達80°С，最大組裝溫度120°С（組裝焊料Tm=139°С）
|
Type |
Imax?(A) |
Qmax?(W) |
Umax(V) |
dTmax?(K) |
R (Ohm) |
А (mm) |
B (mm) |
C (mm) |
D (mm) |
H (mm) |
Availability |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TB-2-(11-4)-1,5 | 1.0 | 0.4 | 1.3 | 93 | 1.3 | 6.0 | 4.0 | 2.0 | 4.0 | 6.7 | For order | ||
| TB-2-(11-4)-1,2 | 1.2 | 0.5 | 1.3 | 92 | 1.6 | 6.0 | 4.0 | 2.0 | 4.0 | 6.1 | For order | ||
| TB-2-(11-4)-1,0 | 1.5 | 0.6 | 1.3 | 92 | 0.9 | 6.0 | 4.0 | 2.0 | 4.0 | 5.7 | For order | ||
| TB-2-(17-4)-1,5 | 1.1 | 0.4 | 2.0 | 94 | 1.9 | 6.0 | 8.0 | 4.0 | 2.0 | 6.7 | For order | ||
| TB-2-(17-4)-1,2 | 1.3 | 0.5 | 2.0 | 93 | 1.5 | 6.0 | 8.0 | 4.0 | 2.0 | 6.1 | For order | ||
| TB-2-(17-4)-1,0 | 1.6 | 0.6 | 2.0 | 91 | 1.3 | 6.0 | 8.0 | 4.0 | 2.0 | 5.7 | For order | ||
| TB-2-(31-8)-1,5 | 1.1 | 0.9 | 3.6 | 93 | 3.4 | 8.0 | 10.0 | 4.0 | 4.0 | 6.7 | For order | ||
| TB-2-(31-8)-1,2 | 1.3 | 1.1 | 3.6 | 92 | 2.7 | 8.0 | 10.0 | 4.0 | 4.0 | 6.1 | For order | ||
| TB-2-(31-8)-1,0 | 1.6 | 1.3 | 3.6 | 91 | 2.3 | 8.0 | 10.0 | 4.0 | 4.0 | 5.7 | For order | ||
| TB-2-(31-12)-1,5 | 1.0 | 1.1 | 3.7 | 93 | 3.6 | 8.0 | 10.0 | 6.0 | 4.0 | 6.7 | For order | ||
| TB-2-(31-12)-1,2 | 1.2 | 1.4 | 3.7 | 92 | 2.9 | 8.0 | 10.0 | 6.0 | 4.0 | 6.1 | For order | ||
| TB-2-(31-12)-1,0 | 1.4 | 1.6 | 3.7 | 91 | 2.4 | 8.0 | 10.0 | 6.0 | 4.0 | 5.7 | For order | ||
| TB-2-(59-18)-1,5 | 1.1 | 1.8 | 7.1 | 94 | 6.7 | 12.0 | 12.0 | 6.0 | 6.0 | 6.7 | For order | ||
| TB-2-(59-18)-1,2 | 1.3 | 2.2 | 7.1 | 93 | 5.3 | 12.0 | 12.0 | 6.0 | 6.0 | 6.1 | For order | ||
| TB-2-(59-18)-1,0 | 1.5 | 2.6 | 7.0 | 92 | 4.4 | 12.0 | 12.0 | 6.0 | 6.0 | 5.7 | For order | ||
| TB-2-(127-127)-1,3 | 2.8 | 16.1 | 15.4 | 83 | 4.7 | 30.0 | 30.0 | 30.0 | 30.0 | 8.8 | For order | ||
| TB-2-(127-127)-1,15 | 5.8 | 34.0 | 15.4 | 84 | 2.3 | 40.0 | 40.0 | 40.0 | 40.0 | 8.5 | Available | ||
| TB-2-(199-199)-0,8 | 10.2 | 95.0 | 24.0 | 84 | 2.3 | 40.0 | 40.0 | 40.0 | 40.0 | 6.8 | For order | ||
| TB-2-(127-127)-1,15 (Bullfinch) | 8.8 | 31.0 | 8.9 | 87 | 1.1 | 40.0 | 40.0 | 40.0 | 40.0 | 7.5 | For order | ||
| TB-2-(1-1)-1,8 | 67.7 | 1.8 | 0.1 | 89 | 0.0 | 6.1 | 12.2 | 2.3 | 5.6 | 4.1 | For order |
