Leveldevelopments Closed Loop Single Axis Servo Inclinometer ±5V Out傾角傳感器

The?Leveldevelopments?Closed Loop Single Axis?Servo Inclinometer?±5V Out LSR is a high precision single axis gravity referenced servo inclinometer sensor suitable for both military andindustrial applications. They are extremely sensitive and linear devices making them particularly suitable for the precise measurement of angle in high vibration environments.

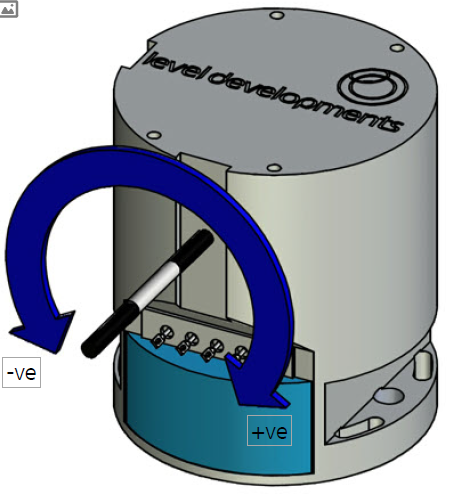

· Single axis angle measuring
· Output fully conditioned offering a complete stand alone measurement system
· Ranges ±1° to ±90°
· Extremely rugged (withstands 1500g shock)
· Measurement resolution down to 0.2 arc seconds
· Analogue voltage (±5V) output.

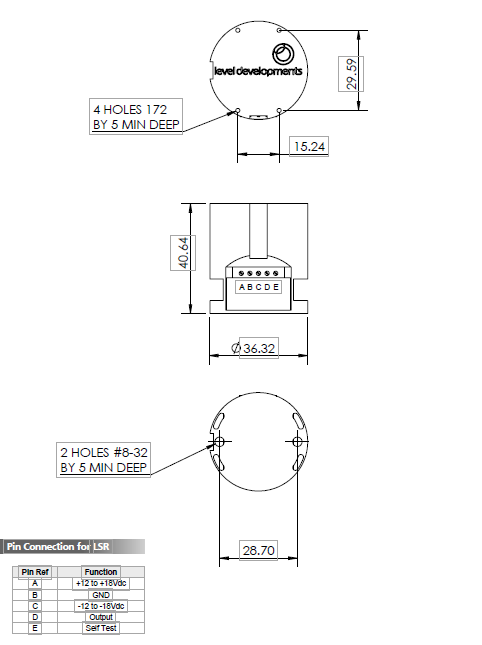

· Solder pin outputs
· Stackable for X and Y dual axis measurements
· 100% Over-range ability
· 2 Year Warranty
