拉曼光纖放大器
1450 nm, Raman Pump
拉曼光纖放大器型號:RamanPump-RS-1450nm-800-FCA
拉曼光纖放大器產品編號:1806
拉曼放大器利用拉曼效應，光子與光纖的振動模式相互作用來放大信號。這些放大器提供了幾個關鍵的優點，包括增加信號范圍和帶寬，降低噪聲和減少信號退化。拉曼放大器可以實現長距離傳輸，而無需昂貴的信號再生，提高了整個系統的效率和可靠性。它們?cè)诓ǚ謴?fù)用(WDM)網絡中至關重要，允許多個信號在一條光纖上同時傳輸。此外，基于拉曼泵浦的放大器有助于實現高容量、低延遲和面向未來的光通信基礎設施。
拉曼光纖放大器 RamanPump-RS-1450nm-800-FCA 產品規格
| Parameters | Specifications |
| Wavelength of Pump Laser | 1450 nm combined pump source |
| Polarization Maintaining Property | 2 of 1450 nm pump sources polarization multiplexed |
| Output Pump Power FC/APC 3mm jacketed Optical Cable | 100 to 800 mW tunable; pump power at each wavelength is tunable 50 mW to 400 mW |
| FC/APC Output Cable #1 | 3mm jacket fiber cable with FC/APC connector.Provide up to 800mW 1450nm power |
| FC/APC Output Cable #2 | 900um jacket fiber cable with FC/APC connector. Pump power output tap |
| FC/APC Output Cable #3 | 900um jacket fiber cable with FC/APC connector. C-band Optical Output for backward-pumping scheme |
| FC/APC Input Cable #4 | 900um jacket fiber cable with FC/APC connector. C-band Optical Input for forward-pumping scheme |
| 1550 nm power monitoring, backward direction | Included |
| 1550 nm power monitoring, the forward direction | Included |
| 1450 nm forward pump power monitoring | Included |
| Backward direction pump power monitoring | Included |
| Control and Communication Interface | RS-232 |
| Dimension | 7.1 x 4.9 x 1.36 inches |
| Power Input | +5 VDC +/- 5% |
| Operational Case Temperature Range | -5 to +70°C |
| Mode of Operation | ACC (constant pump current control) |

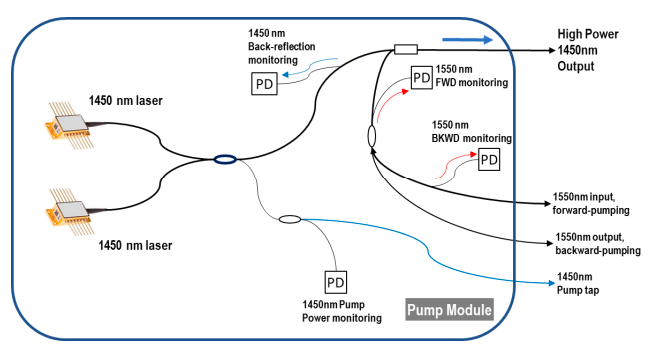

拉曼泵源布局
