拉曼光纖放大器
900 nm，拉曼泵
拉曼光纖放大器型號:RamanPump-RS-900-FCA
拉曼光纖放大器產品編號:1806
拉曼放大器利用拉曼效應，光子與光纖的振動模式相互作用來放大信號。這些放大器提供了幾個關鍵的優點，包括增加信號范圍和帶寬，降低噪聲和減少信號退化。拉曼放大器可以實現長距離傳輸，而無需昂貴的信號再生，提高了整個系統的效率和可靠性。它們?cè)诓ǚ謴?fù)用(WDM)網絡中至關重要，允許多個信號在一條光纖上同時傳輸。此外，基于拉曼泵浦的放大器有助于實現高容量、低延遲和面向未來的光通信基礎設施。
拉曼光纖放大器 RamanPump-RS-1450nm-800-FCA 產品規格
| Parameters | Specifications |
| ?Wavelength of Pump Laser | ?1425, 1435, 1455, and 1465 nm 4-wavelength combined pump source |
| ?Polarization Maintaining Property | ?1425 nm and 1435 nm polarization multiplexed as pump source group 1. 1455 nm and 1465 nm polarization multiplexed as pump source group 2. Group 1 and group 2 are wavelength multiplexed as the overall pump power output |
| ?Output Pump Power FC/APC 3mm jacketed Optical Cable | ?100 to 900 mW tunable; pump power at each wavelength is tunable 25 mW to 225 mW |
| ?FC/APC Output Cable #1 | 3mm jacket fiber cable with FC/APC connector. Provide up to 900mW 14xxnm pump power |
| ?FC/APC Output Cable #2 | 900um jacket fiber cable with FC/APC connector. Pump power output tap |
| ?FC/APC Output Cable #3 | 900um jacket fiber cable with FC/APC connector. C-band Optical Output for backward-pumping scheme |
| ?FC/APC Input Cable #4 | 900um jacket fiber cable with FC/APC connector. C-band Optical Input for forward-pumping scheme |
| ?1550 nm power monitoring, backward direction | ?Included |
| ?1550 nm power monitoring, forward direction | ?Included |
| ?14xx nm forward pump power monitoring | ?Included |
| ?Backward direction pump power monitoring | ?Included |
| ?Control and Communication Interface | ?RS-232 |
| ?Dimension | ?7.1 x 4.9 x 1.36 inches |
| ?Power Input | ?+5 VDC +/- 5% |
| ?Operational Case Temperature Range | ?-5 to +70°C |
| ?Mode of Operation | ?ACC (constant pump current control) |

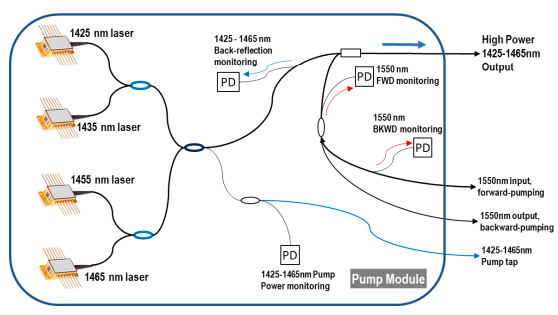

拉曼泵源布局
