摻鉺光纖放大器
Nuphoton Technologies, Inc.是光纖激光器和光纖放大器的先驅，其應用領域涵蓋工業，國防，航空航天，生物醫學，電信和研究領域。該公司自1996年開始運營，使用專有的尖端技術設計和制造高性能光纖激光器、EDFA和寬帶ASE源。
摻鉺光纖放大器型號:EDFA-CW-C0-PM-RS-37-47-FCA
摻鉺光纖放大器產品代碼:1709
微處理器控制的EDFA
摻鉺光纖放大器EDFA-CW-C0-PM-RS-37-47-FCA產品規格
| ?Parameters | Specifications |
| Wavelength Range | 1540 – 1565nm, C-band single channel |
| Polarization Maintaining Property | Provided. Optical signal: slow axis light is amplified; fast axis light is blocked |
| Gain Flattening Filter | Not included |
| Output Power | +37 dBm, tested with 1550 nm, -10 dBm input |
| Gain | 40 dB, tested with 1550 nm, -10 dBm input |
| Optical Input Fiber | 900um loose tube, FC/APC, blue, 1 meter, PM fiber PN: SM15-PS-U25D |
| Optical Output Fiber | 900um loose tube, FC/APC, red, 1 meter, PM fiber PN: SM15-PS-U25D |
| Input Power Monitoring Range | -15 dBm to +5 dBm |
| Output Power Monitoring Range | +15 to +38 dBm |
| Input Power Measurement Accuracy | ≤ +/- 0.5 dB, 1550 nm |
| Output Power Measurement Accuracy | ≤ +/- 0.5 dB, 1550 nm |
| Noise Figure | ≤ 6.5 dB, tested at 40 dB gain, 1550 nm, -10 dBm input |
| Polarization Extinction Ratio | ≥ 20 dB |
| Control and Communication Interface | RS-232, RS232 Voltage Level |
| Dimension | 200 x 100 x 49 mm |
| Power Input | +24 VDC +/- 5% |
| Electrical Interface Connector | PN: 173-E25-113R001 Male 25-PIN |
| Operational Case Temperature Range | 0 to +55?0C |
| Mode of Operation | ACC (constant pump current control) |

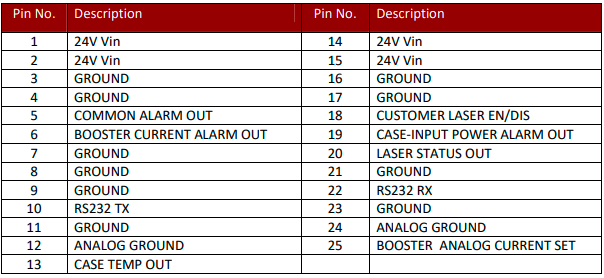

電子連接器:
部件編號:173-E25-113R001
