摻銩光纖放大器
Nuphoton Technologies, Inc.是光纖激光器和光纖放大器的先驅，其應用領域涵蓋工業，國防，航空航天，生物醫學，電信和研究領域。該公司自1996年開始運營，使用專有的尖端技術設計和制造高性能光纖激光器、EDFA和寬帶ASE源。
摻銩光纖放大器型號:TDFA-CW-1940-RS-30-27-FCA
摻銩光纖放大器產品代碼:1709
微處理器控制
摻銩光纖放大器 TDFA-CW-1940-RS-30-27-FCA 產品規格
| ?Parameters | Specifications |
| Wavelength Range | 1910 – 1940 nm |
| Gain Flattening Filter | Not included |
| Output Power | +30 dBm, tested with 1940 nm, +3 dBm input |
| Gain | 27 dB, tested with 1940 nm, +3 dBm input |
| Optical Input Fiber | 900um loose tube, FC/APC, blue, 1 meter, SM1950 |
| Optical Output Fiber | 900um loose tube, FC/APC, red, 1 meter, SM1950 |
| Input Power Monitoring Range | -5 dBm to +5 dBm |
| Output Power Monitoring Range | +20 to +31 dBm |
| Input Power Measurement Accuracy | ≤ +/- 0.5 dB, 1940 nm |
| Output Power Measurement Accuracy | ≤ +/- 0.5 dB, 1940 nm |
| Control and Communication Interface | RS-232, RS232 Voltage Level |
| Dimension | 274 x 130 x 49 mm |
| Power Input | +24 VDC +/- 5% |
| Electrical Interface Connector | PN: 173-E25-113R001 Male 25-PIN |
| Operational Case Temperature Range | 0 to +60?0C |
| Mode of Operation | ACC (constant pump current control) |

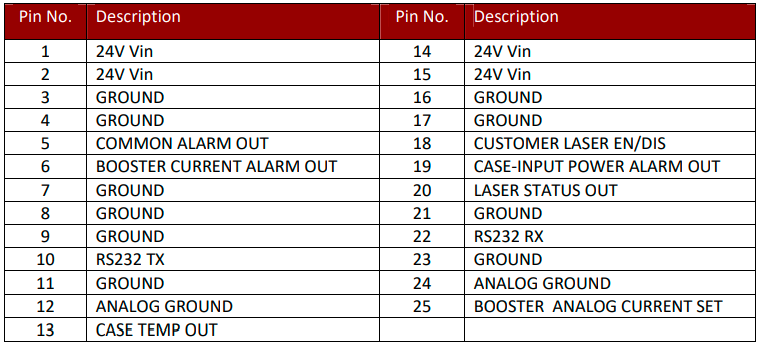

電子連接器:
部件編號:173-E25-113R001
