摻鐿光纖放大器
Nuphoton Technologies, Inc.是光纖激光器和光纖放大器的先驅，其應用領域涵蓋工業，國防，航空航天，生物醫學，電信和研究領域。該公司自1996年開始運營，使用專有的尖端技術設計和制造高性能光纖激光器、EDFA和寬帶ASE源。
摻鐿光纖放大器型號: YDFA-CW-1064-(-10)-30-FCA
摻鐿光纖放大器產品代碼:1102
微處理器控制
摻鐿光纖放大器YDFA-CW-1064-(-10)-30-FCA產品規格
| 參數 | 規格 |
| Wavelength Range | 1064 nm typical, +/- 1 nm |
| Mid-Stage Filter Bandwidth | 2 nm typical, centered at 1064 nm |
| Output Power | -10 dBm at 1064 nm, tested with 1064 nm and -40 dBm input |
| Gain | 30 dB, tested with 1064 nm, -40 dBm input |
| Optical Input Fiber, two | 900um loose tube, FC/APC, blue, 1 meter, HI-1060 |
| Optical Output Fiber, two | 900um loose tube, FC/APC, red, 1 meter, HI-1060 |
| Input Power Monitoring | None |
| Output Power Monitoring | None |
| Control and Communication Interface | RS-232, RS-232 voltage level |
| Dimension | 180 x 125 x 35 mm |
| Power Input | +5 VDC +/- 5% |
| Electrical Interface Connector | PN: MD25M2000/AA, 25-PIN |
| Operational Case Temperature Range | 0 to +65?0C |
| Mode of Operation | ACC (constant pump current control) |

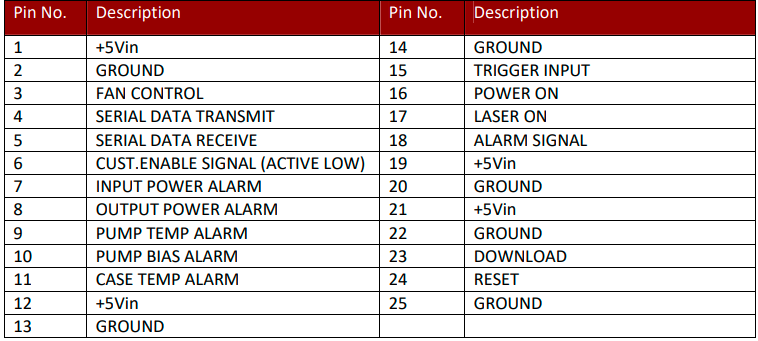

電子連接器:
部件號:MD25M2000/AA
