ASE光源 ASE-06-RS-10-FCA
ASE光源型號:ASE-06-RS-10-FCA
ASE光源產品代碼:1305
微處理器控制
ASE光源 ASE-06-RS-10-FCA產品規格
| ?Parameters | Specifications |
| Wavelength Range | 1020 – 1080 nm typical |
| Gain Flattening Filter | Not included |
| Output Power | 10 dBm at 1064 nm |
| Optical Output Fiber | 900um loose tube, FC/APC, red, 1 meter, HI-1060 |
| Output Power Monitoring Range | 0 to +11 dBm |
| Output Power Measurement Accuracy | ≤ +/- 0.5 dB, 1060 nm |
| Polarization Dependence of Output Power | ≤ 0.3 dB |
| Control and Communication Interface | RS-232, RS-232 voltage level |
| Output Optical Isolator | Included |
| Dimension | 125 x 115 x 17 mm |
| Power Input | +5 VDC +/- 5% |
| Electrical Interface Connector | PN: 5102159-6 |
| Operational Case Temperature Range | 0 to +650C |
| Mode of Operation | ACC (constant pump current control) |

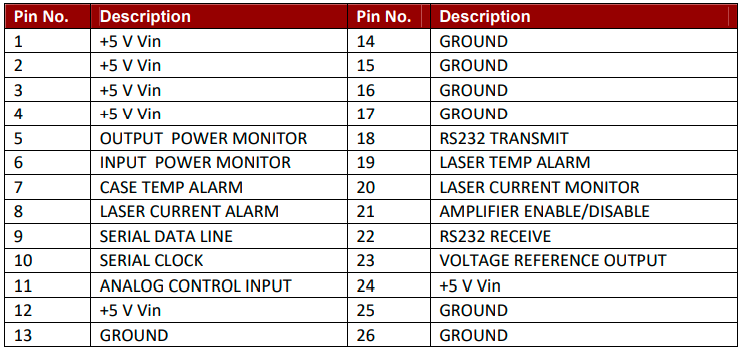

電子連接器:
部件號:5102159-6
