ASE光源 ASE-C0-RS-33-NO-FCA
ASE光源型號:ASE-C0-RS-33-NO-FCA
ASE光源產品代碼:1709
微處理器控制
放大自發發射源
ASE光源 ASE-C0-RS-33-NO-FCA產品規格
| ?Parameters | Specifications |
| Wavelength Range | 1535 – 1565nm |
| Gain Flattening Filter | Not included |
| Output Power | +33 dBm |
| Optical Output Fiber | 900um loose tube, FC/APC, red, 1 meter, SMF-28 |
| Output Power Monitoring Range | +20 to +34 dBm |
| Output Power Measurement Accuracy | ≤ +/- 0.3 dB, 1550 nm |
| Polarization Dependence of Output Power | ≤ 0.3 dB |
| Control and Communication Interface | RS-232, RS232 Voltage Level |
| Dimension | 200 x 100 x 49 mm |
| Power Input | +24 VDC +/- 5% |
| Electrical Interface Connector | PN: 173-E25-113R001 Male 25-PIN |
| Operational Case Temperature Range | 0 to +600C |
| Mode of Operation | AOPC (constant output power control), ACC (constant pump current control) |

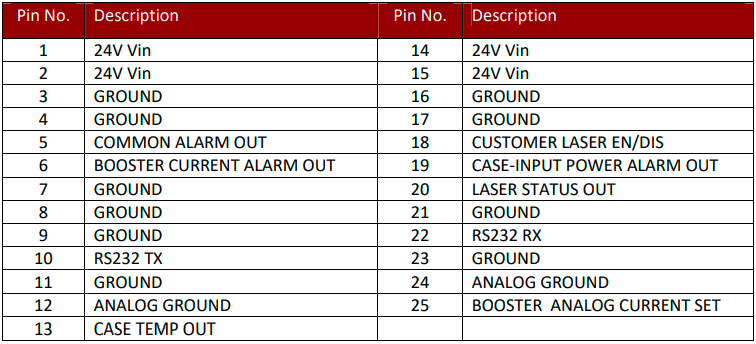

電子連接器:
部件編號:173-E25-113R001
