HPM80 120 VAC Servo Motor
伺服電機
用于伺服應用的80毫米、1.25千瓦可定制電機
- 釹鐵硼磁體
- 平穩、低齒槽運動
- 功率范圍:1.25千瓦
- IP65防護等級
- 行業標準反饋
- 符合CE和RoHS標準
選型：
| MODEL | ||
| PARAMETER | UNITS |
HPM80-04-120-01 |
| Rated Power | W | 1250 |
| Rated Voltage | V | 120 (AC) |
| Continous Stall Torque | ?Nm | 4.77 |
| Max Torque | ?Nm | 14.31 |
| Rated Speed/ Max.Speed | rpm | 2500/3000 |
| Rated Current | A(peak) | 11.25 |
| Max. Current | A(peak) | 33.75 |
| Back EMF Constant, Ke | V(peak)/Krpm | 43.8 |
| Torque Constant, Kt | Nm/A(peak) | 0.42 (1±10%) |
| Moment Of Inertia | x10-4?kg*m2 | 1.48 |
| Number of Poles | # | 8 |
| Mass | kg | 3.1 |
| Feedback Options | Optical encoder (2500 line) | |
| Operating Environment | Temperature: 0 to 40° C; Humidity ≤95% RH, Non-condensing | |
| Storage Environment | Temperature: -20 to 65° C; Humidity ≤95% RH, Non-condensing | |
| Insulation Rating | Class F (155°C Winding Temperature) | |
| Protection Class | IP65 | |
| Duty Cycle | Continuous | |

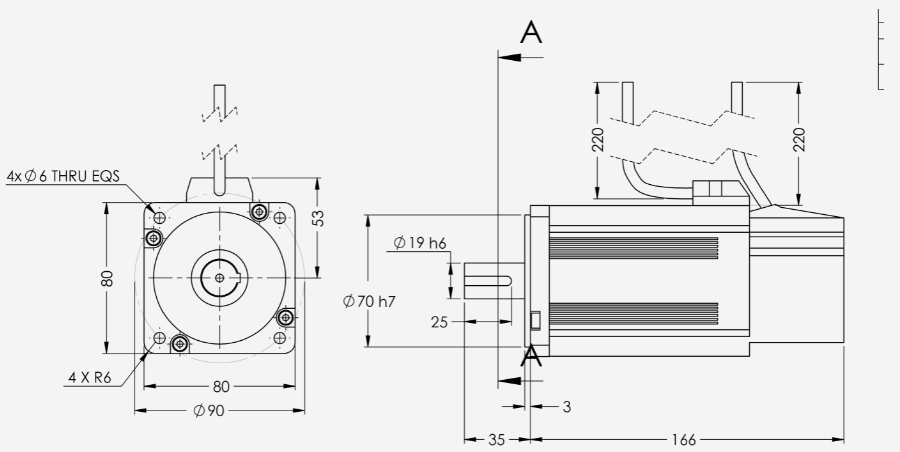

圖紙：
Orbex提供各種可定制的功能，以提高電機效率，滿足定制電壓要求并減小封裝尺寸。
自定義選項
- 線圈
- 抱閘
- 反饋選項
- 齒輪減速器
- 連接器
- 軸和安裝
應用：
