貫穿式微型變壓器 Pico微型電感器

Pico Electronics，Inc.是制造高可靠性微型和超微型無源磁性元件的行業領導者。從海洋深處到火星表面，Pico的變壓器和電感器被用于最堅固的應用中。許多Pico變壓器和電感器已經通過了300次熱循環，并暴露于各種極端溫度下。我們的產品經過了工程設計，并被設計用于整個航空航天，國防，太空和商業行業。當設計需要可靠性時，如果尺寸和重量限制是一個因素，那么Pico Electronics的產品就是解決方案。

所有電感器均具有分立繞組，并且列出了串聯和并聯連接的測量值。為每個電感器列出了兩個電感值，每個值都有特定的直流電流。

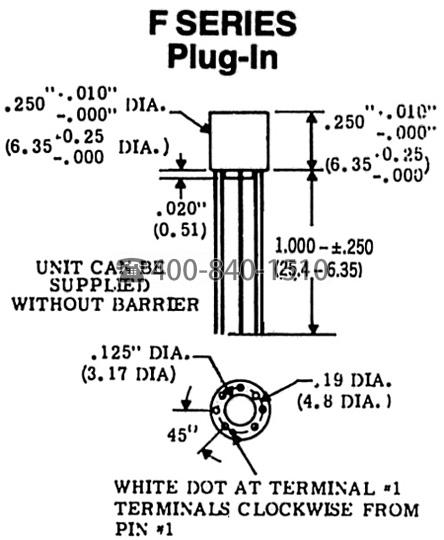

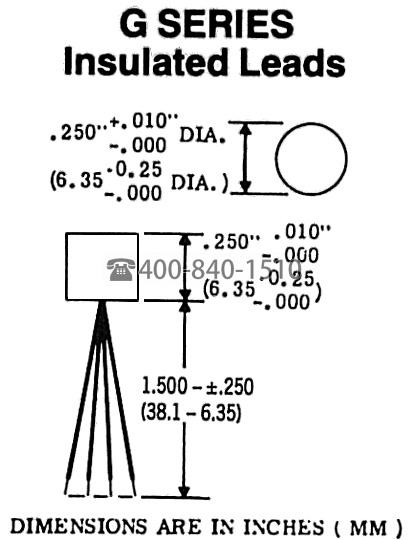

  • AUDIO TRANSFORMERS: 2 OHM – 30K OHM; 400Hz – 250Hz; 100mw at 1KHz (.25″x.25″) — “F” and “G” Series
  • AUDIO TRANSFORMERS: 2 OHM – 40K OHM; 400Hz – 100KHz; 400mw at 1KHz (.35″x.32″) — “W” Series
  • AUDIO TRANSFORMERS: 2 OHM – 100K OHM; 300Hz – 100KHz; 600mw at 1KHz (.35″x.46″) — “Y” Series
  • AUDIO TRANSFORMERS: 2 OHM – 100K OHM; 300Hz – 75KHz; 600mw at 1KHz (.5″x.35″) — “L” and “P” Series
  • AUDIO TRANSFORMERS: 2 OHM – 250K OHM; 150Hz – 75KHz; 1 watt at 1KHz (.5″x.5″) –“K” and “N” Series
  • AUDIO TRANSFORMERS: 2 OHM – 135K OHM; 75Hz – 30KHz; 1.5 watt at 1KHz (.75″x.375″) — “R” Series
  • AUDIO TRANSFORMERS: 2 OHM – 135K OHM; 50Hz – 30KHz; 2 watt at 1KHz (.75″x.52″) — “S” Series
  • AUDIO TRANSFORMERS: 2 OHM – 80K OHM; 20Hz – 25KHz; 3 watt at 1KHz (.75″x.82″) — “T” Series
  • MICROPHONE/TRANSDUCER AUDIO INPUT TRANSFORMERS: 30Hz – 15KHz +/- 1DB — 23000 and 24000 Series
  • PICO ULTRA MINIATURE 400Hz THRU HOLE TRANSFORMERS: .375 VA to 2.4 VA — PRIMARY VOLTAGES OF 115V OR 26V; .4VA TO 2.4VA
  • PICO MINIATURE 400 Hz THRU HOLE TRANSFORMERS: 5 VA to 150 VA– PRIMARY VOLTAGES OF 115V OR 26V— 88000 and 89000 Series
  • PICO ULTRA MINIATURE PULSE TRANSFORMERS: .05uSEC – 100uSEC — “H”, “J”, “E” and “M” Series
  • THRU HOLE PULSE TRANSFORMERS: E.T. Rating – 10 Volt-uSEC to 150 Volt-uSEC — 74000 Series
  • CURRENT SENSE TRANSFORMERS: Current up to 20 Amps – 38500, 38600, 38700 Series
    MIL-STD-1553 INTERFACE TRANSFORMERS/MULTIPLEX DATA BUS PULSE TRANSFORMERS — 68000 and 85000 Series
  • QPL STANDARDS MIL-PRF-21038/27 — 68000 Series
  • ULTRA MINIATURE DC-DC CONVERTER TRANSFORMERS: Input Voltages: 5,12,24,48; Output Voltages: Up to 300V DC; 10w — 31000, 32000, 33000, 34000, 35000, and 36000 Series
  • LARGE TRANSIENT DC CURRENTS POWER INDUCTORS: 25uH – 10mH; Up to 20A DC — 69000 Series
  • MINIATURIZED POWER INDUCTORS; MIL-PRF-27/356-01 THRU MIL-PRF-27/356-63;10uH – 20mH; Up to 5.4A DC — 40000 thru 45000 Series
  • MINIATURIZED POWER INDUCTORS: AXIAL LEADS/SHIELDED CONSTRUCTION: 15uH – 100mH; Up to 10A DC — 72000 Series
  • EMI COMMON MODE SUPPRESSION INDUCTORS: 75uH – 12mH; Up to 5A RMS — 46000 thru 51000 Series
  • ULTRA MINIATURE AND MINIATURE HIGH “Q” INDUCTORS: 100uH – 10H — 62000, 63000, 64000, 65000,and 66000 Series
