SDD system: XRS： The XRF Spectrometer for science and lab 用于科研和實驗室的XRF光譜儀
The XRS is the operation platform for our SDD Modules and supports the full functionality of our Complete?or Standard Module series. It is designed for applications in microanalysis and in X-Ray Fluorescence (XRF) analysis in laboratories and industry. Individually pre-adjusted system parameters combined with the right selection of the SDD module type lead to optimum performance and reliability in the specific field of application.
XRS是我們SDD模塊的操作平臺，支持我們完整或標準模塊系列的全部功能。用于實驗室和工業中的微量分析和X射線熒光（XRF）分析。單獨預調整的系統參數與正確選擇SDD模塊類型相結合，可在特定應用領域實現最佳性能和可靠性。
Key Features

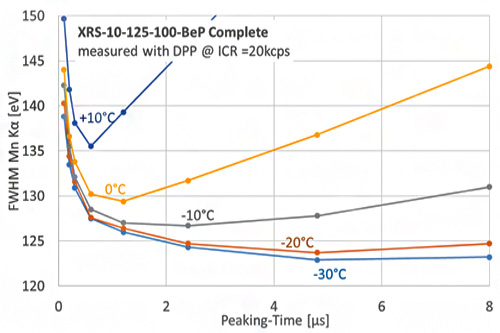

High resolution detector system for use with Digital Pulse Processor (DPP) or analogue shaper

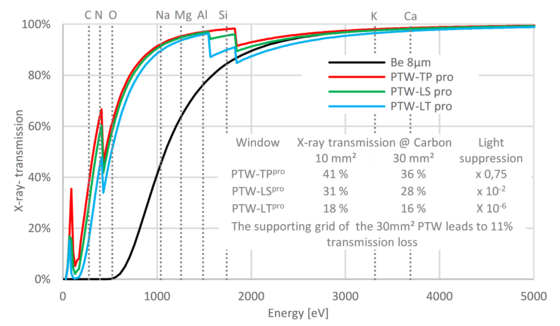

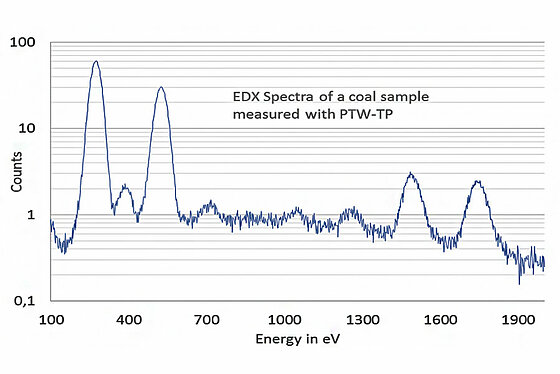

XRF window options?Open Module (OM), Ultra Thin Window (UTW), Beryllium or Planar Thin Window (PTW)?for light element detection down to Lithium

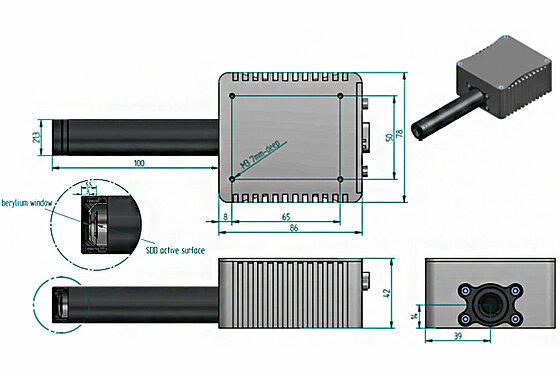

Vacuum tight detector snout?for easy adaption on vacuum chambers
Second Peltier for improved heat dissipation at higher temperatures

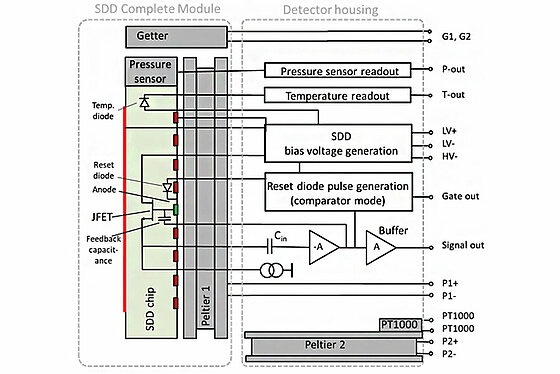

Pressure and temperature monitoring for completely controllable SDD module conditions and Getter reactivation option for extension of module vacuum life time
主要功能
與數字脈沖處理器（DPP）或模擬整形器一起使用的高分辨率探測器系統
XRF窗口選項開放式模塊（OM）、超薄窗口（UTW）、鈹或平面薄窗口（PTW），用于鋰等輕元素檢測
真空緊密型探測器鼻，可輕松適應真空室
珀耳帖可在更高溫度下改善散熱效果
用于完全可控SDD模塊條件的壓力和溫度監測，以及用于延長模塊真空壽命的Getter重新激活選項
