Silicon Drift Detector (SDD) for Standard Applications 基礎版SDD

Silicon Drift Detector (SDD) for Standard Applications 基礎版SDD

Simplicity and high spectroscopic accuracy – that’s what you get with our Base SDDs for?standard applications. A variety of detector modules with energy resolution values of 127 eV FWHM @ Mn-Kα and easy operation are available at excellent prices. They cover active areas ranging from 5 mm2?to 30 mm2.

簡單性和高光譜精度——這就是我們的標準應用基礎SDD所能提供的。各種探測器模塊的能量分辨率值為127eVFWHM@Mn-Kα，操作簡單，價格低廉。它們覆蓋的有效面積范圍從5平方毫米到30平方毫米。

Excellent Performance at Excellent Prices

  • High spectroscopic accuracy with energy resolution values down to?125 eV?FWHM?@?Mn-Kα

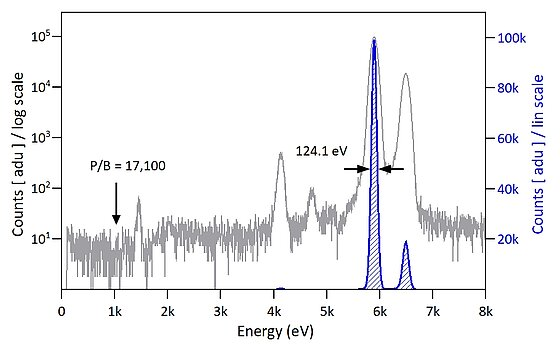

  • Low spectral background with P/B values up to?20 000?and P/V values up to 4 000

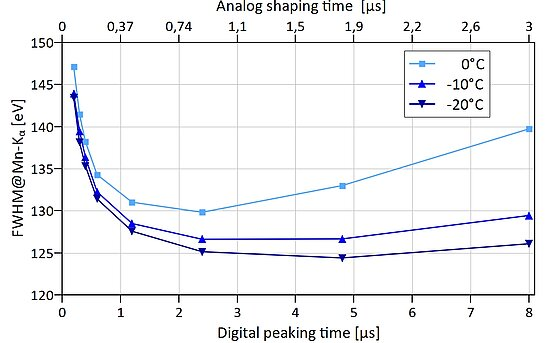

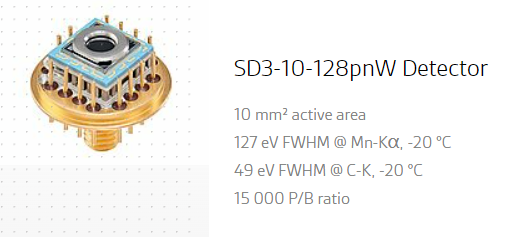

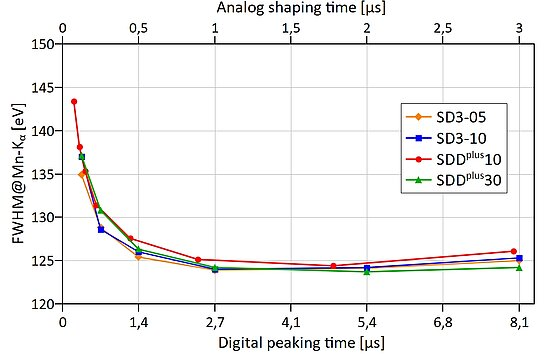

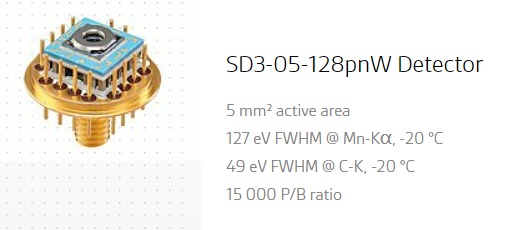

  • Very good energy resolution even at short processing times, especially for our droplet shaped SD3 detectors

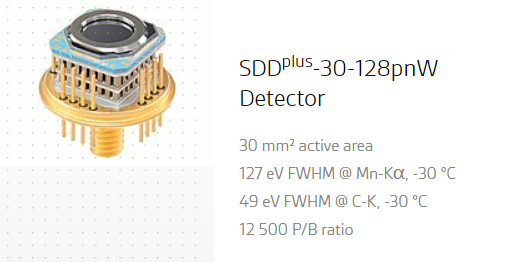

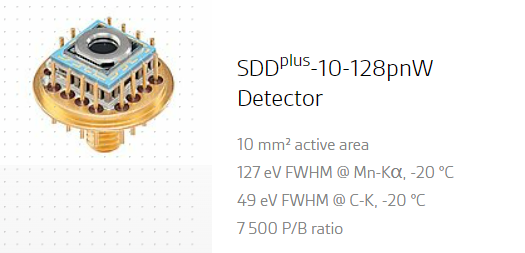

  • Our SDDplus?detectors are also available with?larger active areas

  • All detector modules are available with either?Beryllium Window?or?Ultra Thin Polymer Window (UTW)?and?Planar Thin Window (PTW)?for light element detection

物美價廉，性能卓越
能量分辨率高光譜精度值低至125 eV FWHM@Mn-Kα
低光譜背景下， P/B值高達20000，P/V值高達4000
即使在很短的處理時間內，也有很好的能量分辨率，尤其是對于我們的液滴形SD3探測器
我們的SDDplus探測器也可用于更大的活動區域
所有探測器模塊均提供鈹窗或超薄聚合物窗（UTW）和平面薄窗（PTW），用于光元件探測
