Silicon Drift Detector (SDD) high detection efficiency 大面積SDD
To increase the detector collection efficiency, PNDetector developed different SDD sensors with large detection areas and optimized geometries. With our?unique and unrivalled designs?solid angles exceeding 1 sr can be achieved with single channel SDDs.
為了提高探測器的收集效率，PNDetector開發了具有大探測面積和優化幾何形狀的不同SDD傳感器。憑借我們獨特而無與倫比的設計，單通道SDD可以實現超過1 sr的立體角。
Large areas – great efficiency

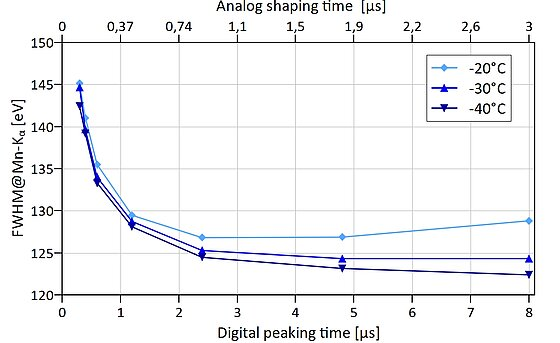

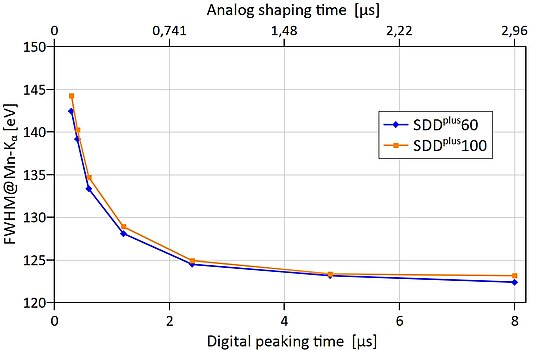

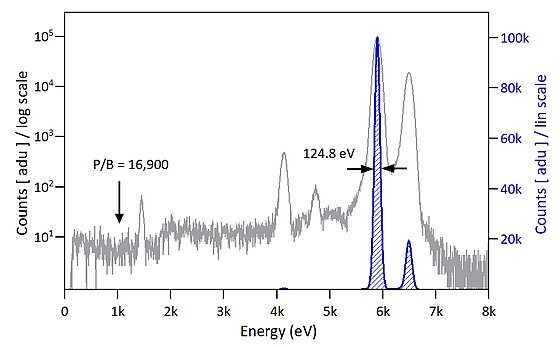

Excellent energy resolution down to?125 eV?@ ?30 °C or?123 eV?@ ?40 °C

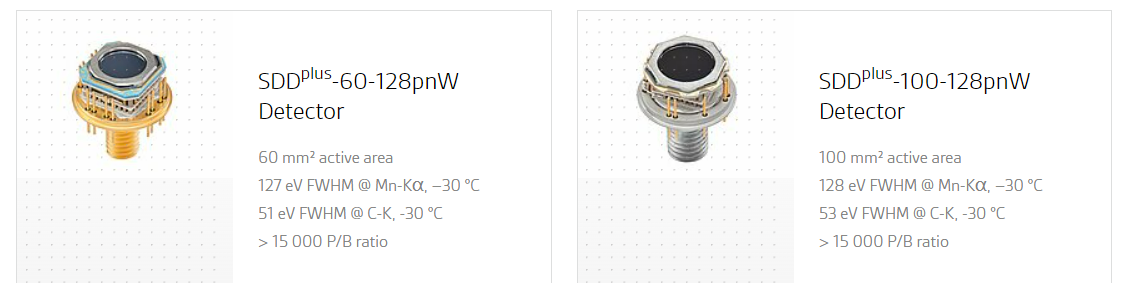

The superior energy resolution enables light element detection down to?Lithium?even with 100 mm2?SDDs

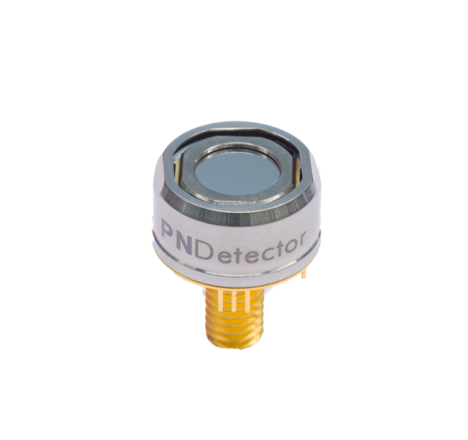

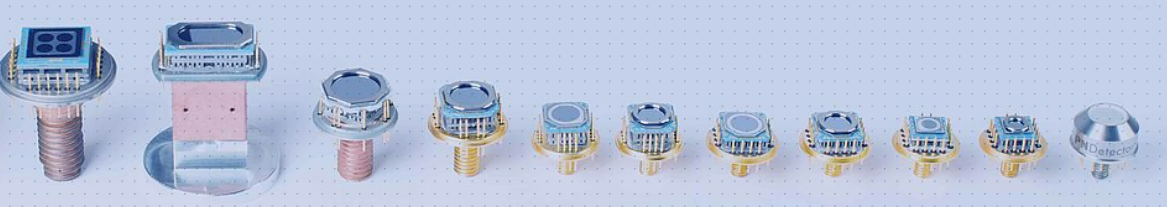

Due to our long lasting experience in packaging, we can offer extremely compact and application-oriented module packages, with chamfered caps
Small modifications can lead to big changes – to achieve the best fit request a proposal for a customized solution tailored to your system
大面積-高效
出色的能量分辨率，在?30°C時可降至125 eV或在?40°C時降至123 eV
卓越的能量分辨率可實現低至鋰的輕元素檢測，即使使用100 mm2 SDD
由于我們在包裝方面的長期經驗，我們可以提供極其緊湊和面向應用的模塊包裝，帶有倒角蓋
小的修改可能會帶來大的變化——為了達到最佳效果，請提出針對您的系統定制解決方案的建議
