代理Power technology PM90(685-100)G55B1半導體激光管模塊
Power technology用于 OEM 應用的 685nm、100mW 半導體激光管模塊。Power technology PM90（685-100）G55B1 激光器專為需要這種獨特波長、穩定輸出功率和良好波長穩定性的應用而設計。新型 PM 模塊提供的可選功率是以前激光器的兩倍，以及改進的近乎圓形的光束輪廓。Power technology PM90（685-100）G55B1 具有具有高質量光學元件的聚焦或準直光束，提供 685nm 的典型波長，并在 3.3-9VDC 范圍內最佳運行。該模塊的多功能性使其成為各種用途的理想選擇，包括機器視覺、生命科學、3D 掃描和對齊應用。準直后，激光模塊的光束直徑為 1.16 x 1.80 毫米，可提供近乎圓形的輪廓。此外，還提供偏射極限聚焦光束。

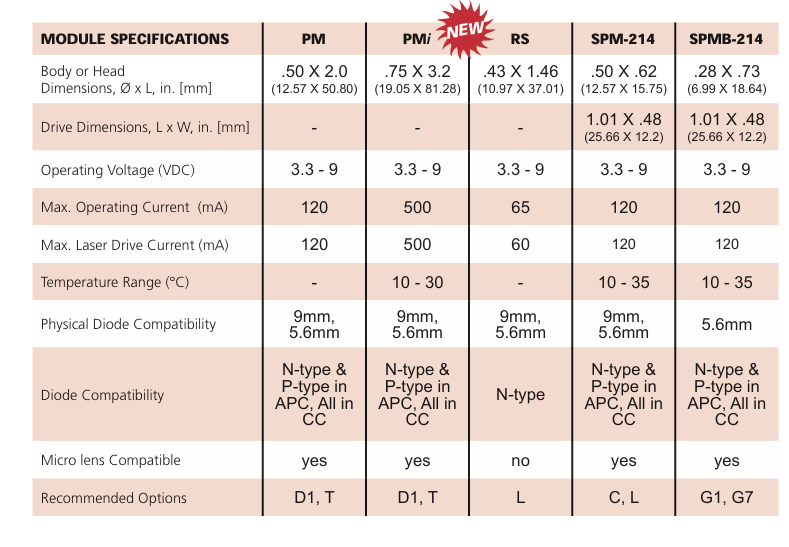

美國Power technology激光器規格：
Power technology PM90(685-100)G55B1半導體激光管模塊規格：
| Wavelength (nm) | 685 |
|---|---|
| Laser Safety Class | Class 3b |
| Wavelength Tolerance | +-10nm |
| Power | 100 |
| Warranty | 1 Year |
| Power Units | mW |
| Pwr Stability Over Temp Rng | ±3% |
| Noise RMS(10Hz-5MHz) | <0.5% |
| Color | Red |
| Beam Shape | Circular, Elliptical |
| Default Optical Configuration | Focused at 5 feet |
| User Focusable | Yes |
| Transverse Mode Structure | TEMoo |
| Polarization Ratio | >100:1 at 100% power |
| Polarization State | Linear |
| Beam Pointing Stability | <10 |
| Operating Mode | CW |
| Operating Voltage | 3.3-9 |
| Operating Voltage Units | VDC |
| Max Operating Current (mA) | 125 |
| Operating Current Units | mA |
| Product Weight (lbs.) | 0.28 |
| Platform | PM |
