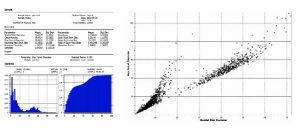

Principle: particle suspension is pumped through the flow-through cell, directly from the process or from a sample. A CCD camera is continuously taking images which are analysed and displayed online. Results like particle size or number of particles of a certain shape can be displayed as trends or size distributions. Image sequences can be stored.
粒度儀 在線粒度儀
Complete system: with stainless steel flowthrough cell and housing, CCD camera, high power LED light source, computer and software for online image analysis.
Applications:
? Particles, droplets or bubbles in liquid

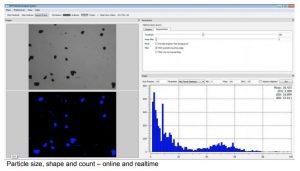

? Measurement of size, shape and count
? Distinction between crystalline/amorphous particles
? High pressure / high temperature
? Counting product beads into vials
? Food, pharma, polymers, chemicals, oils…
Measurement range: > 1 μm
Image sampling rate: 30 images / sec analysed online
