適用各類光分解作用：

乙醛

酮

鹵素誘導體

硫代化合物

石蠟

雜環化合物

芳香點分子核

共軛二烯烴

聚烯化合物

環氧化合物

ICH 光安定測試

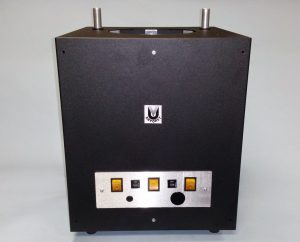

The RPR-200 model reactor utilizes the same chamber as found in our popular RPR-100 model. It was designed for vertical and horizontal operation. Unlike our standard 100 model, the 200 has greater flexibility. The Rayonet chamber lamps are controlled by dual switches located on the front panel. It is an intense source of ultraviolet light. approximately 1.65×10 photons/sec/cm3 at 2537A°. No special water jacketed vessels are required. Standard features include (16) 14 watt light sources at 2537A°, 2-built in support rods and a 250 watt convenience outlet. ?Reactor will operate for overseas operation (220/240v power grid – please be sure to request this in the notes of your quote request).

Designed for the Photolysis of: Heterocyclic Compounds, Ketones, Aromatic Nuclei, Halogen Derivatives, Conjugated Dynes, Thio Compounds, Polyenes, Olefins, Epoxides

Ideal for ICH Photo stability Testing.
OPTIONAL ACCESSORIES:

• Adjustable Legs
• Merry Go-Round sample holders
  • RMA-400
  • RMA-500
• Nitrogen Cooling Manifold (for low temp study)
• Aluminum Tray
• Cooling Fan
• Magnetic Stirrer

RPR LIGHT SOURCES OPTIONS:

• 1849/2537A°
• 2537A°
• 3000A°
• 3500A°
• 4190A°
• 5750A°

Economical – Long lamp life is 3000 hours.

SPECIFICATIONS: Model RPR-200 is a compact 16″ high, 14 1/2″ square at base. Reactor chamber is 16″ deep, 10″ in diameter, with 2/8″ openings at top and bottom. Light source arc length 9″, operating temp 40°C; weight 50 lbs.; 110/227 volts, 50/60 Hz., A.C. Total current consumption approximately 400 watts. The finish is an attractive and powder coated process.

RPR-2537A° LAMPS ARE USED IN THE RAYONET REACTOR^?
Watts of 2537A° ultraviolet — 35 watts approx.
Photos of 2537A° ultraviolet — 1.65 x 1016 sec/cm3
