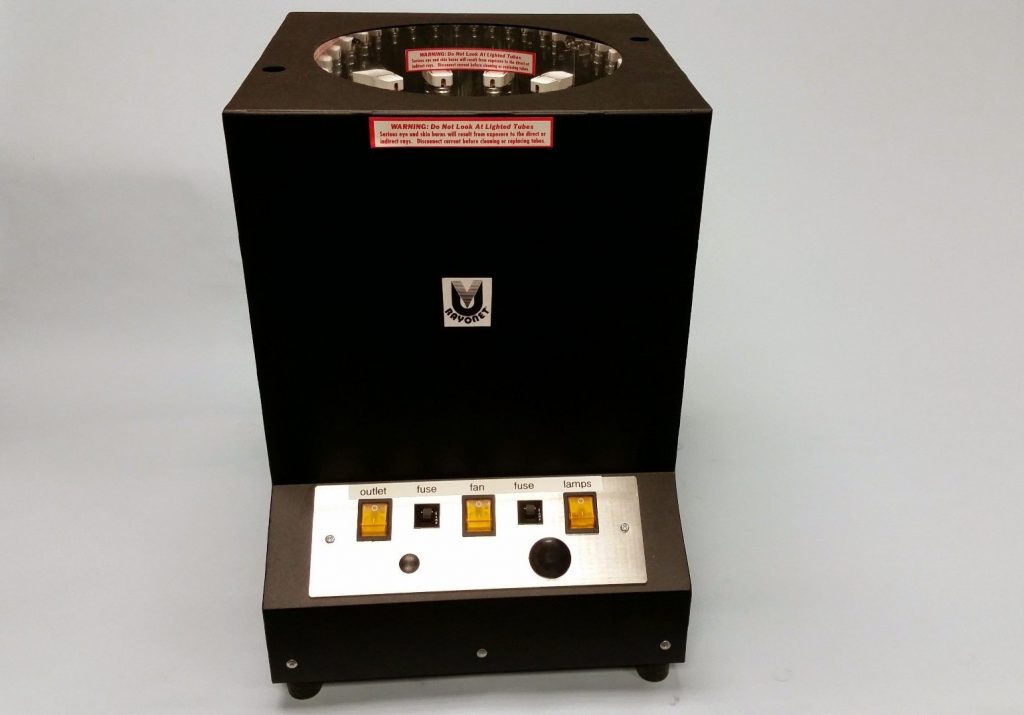

The RPR-200 model reactor utilizes the same chamber as found in our popular RPR-100 model. It was designed for vertical and horizontal operation. Unlike our standard 100 model, the 200 has greater flexibility. The Rayonet chamber lamps are controlled by dual switches located on the front panel. It is an intense source of ultraviolet light. approximately 1.65×10 photons/sec/cm3 at 2537A°. No special water jacketed vessels are required. Standard features include (16) 14 watt light sources at 2537A°, 2-built in support rods and a 250 watt convenience outlet. ?Reactor will operate for overseas operation (220/240v power grid – please be sure to request this in the notes of your quote request).
Designed for the Photolysis of: Heterocyclic Compounds, Ketones, Aromatic Nuclei, Halogen Derivatives, Conjugated Dynes, Thio Compounds, Polyenes, Olefins, Epoxides
Ideal for ICH Photo stability Testing.
OPTIONAL ACCESSORIES:
- Adjustable Legs
- Merry Go-Round sample holders
- Nitrogen Cooling Manifold (for low temp study)
- Aluminum Tray
- Cooling Fan
- Magnetic Stirrer
RPR LIGHT SOURCES OPTIONS:
Economical – Long lamp life is 3000 hours.
Watts of 2537A° ultraviolet — 35 watts approx.
Photos of 2537A° ultraviolet — 1.65 x 1016 sec/cm3.
Intensity readings in Microwatts/cm2 at:
Wave Length (A°) | Center | 2″ from Lamps | 1.5″ from Lamps |
2537 | 12800 | 16000 | 21000 |
2652 | 388 | 488 | 640 |
2804 | 14 | 16 | 21 |
2894 | 18 | 16 | 21 |
2967 | 66 | 83 | 109 |
3022 | 32 | 40 | 52 |
3129 | 250 | 313 | 411 |
3654 | 213 | 267 | 351 |
4047 | 250 | 316 | 416 |
4359 | 768 | 960 | 1260 |
5461 | 418 | 523 | 687 |
5780 | 91 | 113 | 149 |
*Above data from new lamps with a reactor temperature of 44°C.
