奧地利Roithner Lasertechnik GmbH? SMD發光二極管 GD35 系列、SMB1N系列、NCA系列、NV2系列、NV1系列、NC2系列

SMD發光二極管

High Power Single Chip SMD LEDs

高功率單片貼片發光二極管

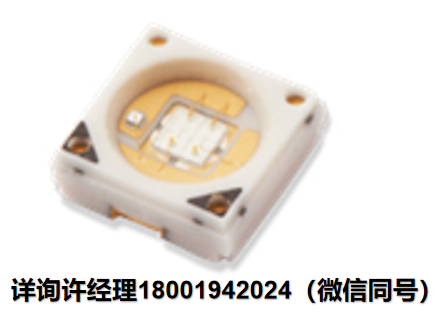

GD35 系列

低成本高功率LED
3.5 x 3.5毫米SMD封裝，帶石英玻璃透鏡(< 400納米)和硅樹脂透鏡(> 445納米)
波長:370納米- 1330納米

Part No.	波長	輸出功率	電流	φ	尺寸	注意
GD35X-370-DL	370 nm	600 mW	350 mA	120°	3.5 x 3.5 x 2.1 mm	NEW
GD35X-380-DL	380 nm	600 mW	350 mA	120°	3.5 x 3.5 x 2.1 mm	NEW
GD35X-390-DL	380 nm	600 mW	350 mA	120°	3.5 x 3.5 x 2.1 mm	NEW
GD35X-400-DL	380 nm	600 mW	350 mA	120°	3.5 x 3.5 x 2.1 mm	NEW
GD35V-445-DL	445 nm	10 lm	350 mA	120°	3.5 x 3.5 x 2.1 mm	NEW
GD35V-465-DL	465 nm	30 lm	350 mA	120°	3.5 x 3.5 x 2.1 mm	NEW
GD35V-480-DL	480 nm	55 lm	350 mA	120°	3.5 x 3.5 x 2.1 mm	NEW
GD35V-495-DL	495 nm	90 lm	350 mA	120°	3.5 x 3.5 x 2.1 mm	NEW
GD35V-525-DL	525 nm	120 lm	350 mA	120°	3.5 x 3.5 x 2.1 mm	NEW
GD35V-590-DL	590 nm	50 lm	350 mA	120°	3.5 x 3.5 x 2.1 mm	NEW
GD35V-625-DL	625 nm	65 lm	350 mA	120°	3.5 x 3.5 x 2.1 mm	NEW
GD35V-655-DL	655 nm	25 lm	350 mA	120°	3.5 x 3.5 x 2.1 mm	NEW
GD35V-675-DL	675 nm	10 lm	350 mA	120°	3.5 x 3.5 x 2.1 mm	NEW
GD35N-735-DL	735 nm	250 mw	350 mA	120°	3.5 x 3.5 x 2.1 mm	NEW
GD35N-845-DL	845 nm	250 mw	350 mA	120°	3.5 x 3.5 x 2.1 mm	NEW
GD35N-945-DL	945 nm	250 mw	350 mA	120°	3.5 x 3.5 x 2.1 mm	NEW
GD35N-1045-DL	1045 nm	200 mw	350 mA	120°	3.5 x 3.5 x 2.1 mm	NEW
GD35N-1330-DL	1330 nm	70 mw	350 mA	120°	3.5 x 3.5 x 2.1 mm

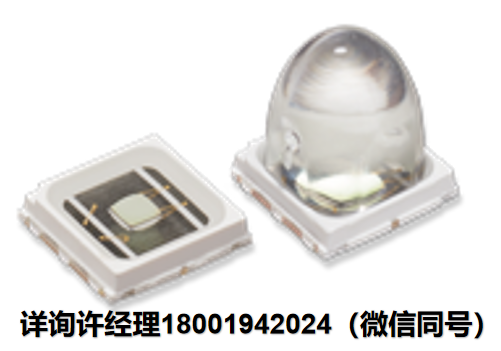

SMB1N系列

大功率LED，功率芯片技術
芯片尺寸1 x 1 mm，安裝在銅散熱器上，采用耐熱聚酰胺(PA9T) SMD封裝，無引線
底座尺寸:5.0 x 5.0毫米
硅樹脂/環氧樹脂模具，平板或透鏡
波長:365納米- 1550納米可用

Part No.	波長	輸出功率	電流	電壓	φ	尺寸	注意
SMB1N-BB450	400-1000 nm	300 mW	500 mA	3.1 V	130°	5.0 x 5.2 x 1.0 mm	broadband LED
SMB1N-BB450-02	400-1000 nm	300 mW	500 mA	3.1 V	20°	5.0 x 5.2 x 5.5 mm	broadband LED
SMB1N-365V	365 nm	500 mW	500 mA	<4.5 V	126°		Integrated ESD protection
SMB1N-365V-02	365 nm	500 mW	500 mA	<4.5 V	20°		Integrated ESD protection
SMB1N-375V	375 nm	560 mW	500 mA	<4.5 V	126°		Integrated ESD protection
SMB1N-375V-02	375 nm	560 mW	500 mA	<4.5 V	20°		Integrated ESD protection
SMB1N-385V	385 nm	720 mW	500 mA	<3.9 V	122°		Integrated ESD protection
SMB1N-385V-02	385 nm	720 mW	500 mA	<3.9 V	22°		Integrated ESD protection
SMB1N-395V	395 nm	750 mW	500 mA	<4.5 V	126°		Integrated ESD protection
SMB1N-395V-02	395 nm	750 mW	500 mA	<4.5 V	22°		Integrated ESD protection
SMB1N-405V	405 nm	710 mW	500 mA	<4.2 V	126°		Integrated ESD protection
SMB1N-405V-02	405 nm	710 mW	500 mA	<4.2 V	22°		Integrated ESD protection
SMB1N-415H	415 nm	300 mW	350 mA	<4.5 V	124°		Integrated ESD protection
SMB1N-415H-02	415 nm	300 mW	350 mA	<4.5 V	22°		Integrated ESD protection
SMB1N-420H	420 nm	420 mW	350 mA	<3.8 V	126°		Integrated ESD protection
SMB1N-420H-02	420 nm	420 mW	350 mA	<3.8 V	20°		Integrated ESD protection
SMB1N-430H	430 nm	500 mW	350 mA	<3.8 V	128°
SMB1N-430H-02	430 nm	500 mW	350 mA	<3.8 V	22°
SMB1N-435V	435 nm	800 mW	500 mA	<4.5 V	126°		Integrated ESD protection
SMB1N-435V-02	435 nm	800 mW	500 mA	<4.5 V	22°		Integrated ESD protection
SMB1N-D450	450 nm	480 mW	350 mA	<4.0 V	130°
SMB1N-D450-02	450 nm	480 mW	350 mA	<4.0 V	20°
SMB1N-D470	470 nm	480 mW	350 mA	<3.8 V	130°
SMB1N-D470-02	470 nm	470 mW	350 mA	<3.8 V	20°
SMB1N-490H	490 nm	240 mW	350 mA	<3.8 V	130°
SMB1N-490H-02	490 nm	240 mW	350 mA	<3.8 V	22°
SMB1N-515V	515 nm	230 mW	350 mA	<3.6 V	126°
SMB1N-515V-02	515 nm	250 mW	350 mA	<3.6 V	18°
SMB1N-D520	520 nm	240 mW	350 mA	<3.8 V	130°
SMB1N-D520-02	520 nm	250 mW	350 mA	<3.8 V	20°
SMB1N-525V	525 nm	230 mW	350 mA	<3.6 V	126°
SMB1N-525V-02	525 nm	230 mW	350 mA	<3.6 V	22°
SMB1N-550H	550 nm	100 mW	350 mA	<3.4 V	130°		NEW
SMB1N-550H-02	550 nm	100 mW	350 mA	<3.4 V	20°		NEW
SMB1N-590	590 nm	120 mW	350 mA	<3.0 V	126°
SMB1N-590-02	590 nm	120 mW	350 mA	<3.0 V	18°
SMB1N-620D	620 nm	190 mW	350 mA	<2.7 V	128°
SMB1N-620-02	620 nm	190 mW	350 mA	<2.7 V	20°
SMB1N-620D-02	620 nm	190 mW	350 mA	<2.7 V	20°
SMB1N-D630	630 nm	330 mW	350 mA	<2.8 V	126°
SMB1N-D630-02	630 nm	290 mW	350 mA	<2.8 V	18°
SMB1N-D660N	660 nm	320 mW	350 mA	<3.0 V	126°
SMB1N-D660N-02	660 nm	320 mW	350 mA	<3.0 V	20°
SMB1N-670D	670 nm	520 mW	600 mA	<3.0 V	128°
SMB1N-670D-02	670 nm	520 mW	600 mA	<3.0 V	18°
SMB1N-680D	680 nm	520 mW	600 mA	<3.0 V	124°
SMB1N-680D-02	680 nm	520 mW	600 mA	<3.0 V	18°
SMB1N-690D	690 nm	520 mW	600 mA	<3.0 V	128°
SMB1N-690D-02	690 nm	520 mW	600 mA	<3.0 V	18°
SMB1N-700D	700 nm	200 mW	500 mA	<2.3 V	128°
SMB1N-700D-02	700 nm	200 mW	500 mA	<2.3 V	20°
SMB1N-720	720 nm	170 mW	600 mA	<2.8 V	130°		phase out
SMB1N-720D	720 nm	520 mW	600 mA	<2.4 V	128°
SMB1N-720D-02	720 nm	520 mW	600 mA	<2.4 V	20°
SMB1N-735-02	735 nm	200 mW	600 mA	<2.3 V	22°		phase out
SMB1N-740D	740 nm	290 mW	600 mA	<2.4 V	126°
SMB1N-740D-02	740 nm	290 mW	600 mA	<2.4 V	18°
SMB1N-750-02	750 nm	290 mW	800 mA	<2.4 V	20°		phase out
SMB1N-750D	750 nm	700 mW	800 mA	<2.5 V	128°
SMB1N-750D-02	750 nm	700 mW	800 mA	<2.5 V	18°
SMB1N-760D	760 nm	400 mW	800 mA	<2.5 V	128°
SMB1N-760D-02	760 nm	400 mW	800 mA	<2.5 V	20°
SMB2N-760D-I	760 nm	800 mW	800 mA	<5.0 V			2 chip dies, isolated
SMB3N-760D-I	760 nm						3 chip dies, isolated
SMB1N-770	770 nm	290 mW	800 mA	<2.5 V	130°
SMB1N-770-02	770 nm	330 mW	800 mA	<2.5 V	20°
SMB1N-780D	780 nm	500 mW	800 mA	<2.6 V	128°
SMB1N-780D-02	780 nm	500 mW	800 mA	<2.6 V	18°
SMB2N-780D-I	780 nm	800 mW	800 mA	<5.2 V			2 chip dies, isolated
SMB1N-800D	800 nm	450 mW	800 mA	<2.6 V	128°
SMB1N-800D-02	800 nm	450 mW	800 mA	<2.6 V	18°
SMB1N-810D	810 nm	560 mW	800 mA	<2.5 V	126°
SMB1N-810D-02	810 nm	560 mW	800 mA	<2.5 V	20°
SMB1N-830N	830 nm	280 mW	800 mA	<2.2 V	128°
SMB1N-830N-02	830 nm	340 mW	800 mA	<2.2 V	18°
SMB1N-850D	850 nm	780 mW	1 A	<2.5 V	130°
SMB1N-850D-02	850 nm	780 mW	1 A	<2.5 V	20°
SMB1N-850DS	850 nm	1.4W	1 A	<4.2 V	128°
SMB1N-850DS-02	850 nm	1.4W	1 A	<4.2 V	20°
SMB2N-850D-I	850nm	1.2 W	1 A	<4.8 V	122°		3 chips, isolated
SMB3N-850D-I	850nm	1.8 W	1 A	<7.5 V	120°		3 chips, isolated
SMB1N-870	870 nm	440 mW	1 A	<2.0 V	130°		phase out
SMB1N-880	880 nm	320 mW	800 mA	<2.2 V	128°
SMB1N-880D	880 nm	610 mW	800 mA	<2.5 V	130°
SMB1N-880D-02	880 nm	610 mW	800 mA	<2.5 V	18°
SMB1N-890D	890 nm	590 mW	800 mA	<2.5 V	128°
SMB1N-890D-02	890 nm	590 mW	800 mA	<2.5 V	18°
SMB1N-890DS	890 nm	1.4 W	1 A	<4.0 V	128°
SMB1N-890DS-02	890 nm	1.4 W	1 A	<4.0 V	20°
SMB1N-910D	910 nm	850m W	1 A	<2.5 V	126°
SMB1N-910D-02	910 nm	850m W	1 A	<2.5 V	20°
SMB1N-940-02	940 nm	120 mW	500 mA	<1.8 V	24°		phase out
SMB1N-940D	940 nm	630 mW	1 A	<1.8 V	124°
SMB1N-940D-02	940 nm	630 mW	1 A	<1.8 V	22°
SMB1N-940DS	940 nm	1.3 W	1 A	<3.8 V	128°
SMB1N-940DS-02	940 nm	1.3 W	1 A	<3.8 V	20°
SMB1N-970D	970 nm	780 mW	1 A	<2.5 V	130°
SMB1N-970D-02	970 nm	780 mW	1 A	<2.5 V	20°
SMB1N-980D	980 nm	400 mW	800 mA	<2.0 V	128°
SMB1N-980D-02	980 nm	400 mW	800 mA	<2.0 V	20°
SMB1N-1050	1050 nm	35 mW	500 mA	<1.65 V	134°
SMB1N-1050-02	1050 nm	35 mW	500 mA	<1.65 V	20°
SMB1N-1050D	1050 nm	160 mW	1 A	<2.2 V	128°
SMB1N-1050D-02	1050 nm	200 mW	1 A	<2.2 V	18°
SMB1N-1050GD	1050 nm	700 mW	1 A	<1.8 V	128°
SMB1N-1050GD-02	1050 nm	750 mW	1 A	<1.8 V	20°
SMB1N-1100D	1100 nm	280 mW	1 A	<1.8 V	128°
SMB1N-1100D-02	1100 nm	350 mW	1 A	<1.8 V	18°
SMB1N-1150D	1150 nm	210 mW	1 A	<1.8 V	128°
SMB1N-1150D-02	1150 nm	260 mW	1 A	<1.8 V	18°
SMB1N-1200-02	1200 nm	35 mW	500 mA	<1.4 V	18°
SMB1N-1200S	1200 nm	50 mW	500 mA	<1.4 V	136°
SMB1N-1200D	1200 nm	180 mW	1 A	<1.7 V	128°
SMB1N-1200D-02	1200 nm	220 mW	1 A	<1.7 V	18°
SMB1N-1300L	1300 nm	25 mW	500 mA	<1.4 V	134°
SMB1N-1300D	1300 nm	160 mW	1 A	<1.7 V	128°
SMB1N-1300D-02	1300 nm	200 mW	1 A	<1.7 V	18°
SMB1N-1450D	1450 nm	72 mW	1 A	<1.7 V	128°
SMB1N-1450D-02	1450 nm	90 mW	1 A	<1.7 V	18°
SMB1N-1550S	1550 nm	20 mW	500 mA	<1.4 V	136°
SMB1N-1550D	1550 nm	50 mW	1 A	<1.7 V	128°
SMB1N-1550D-02	1550 nm	62 mW	1 A	<1.7 V	20°
SMB1N-1650S	1650 nm	16 mW	500 mA	<1.5 V	136°
SMB1N-1650-02	1650 nm	16 mW	500 mA	<1.5 V	20°
SMB1N-1650D	1650 nm	36 mW	1 A	<1.6 V	128°
SMB1N-1650D-02	1650 nm	45 mW	1 A	<1.6 V	18°
SMB1N-1900D	1900 nm	27 mW	1 A	<1.6 V	128°		NEW
SMB1N-1900D-02	1900 nm	30 mW	1 A	<1.6 V	18°		NEW

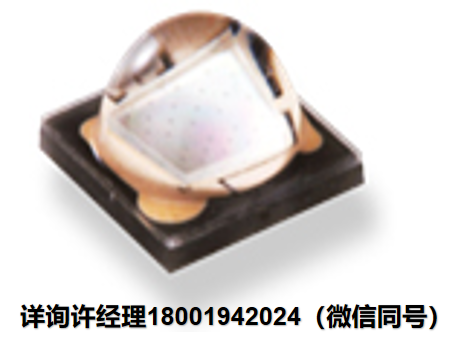

NCA系列

玻璃窗
陶瓷SMD 6868封裝
低熱阻
集成ESD保護
無鉛產品/符合RoHS標準

Part No.	波長	輸出功率	電流	電壓	φ	尺寸	注意
UVLED-365-750-SMD	365 nm	750 mW	500 mA	3.8 V	120°	6.8 x 6.8 x 1.9 mm	glass window
UVLED-385-800-SMD	385 nm	800 mW	500 mA	3.6 V	120°	6.8 x 6.8 x 1.9 mm	glass window

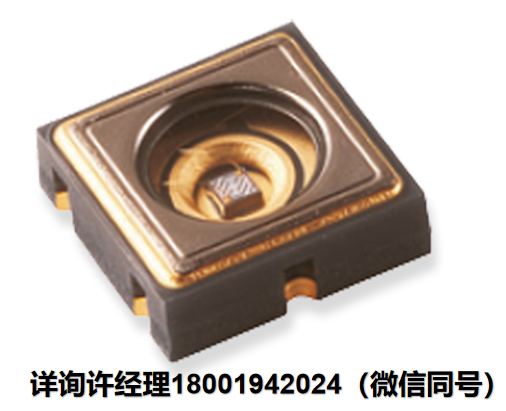

NC2 系列

高功率紫外發光二極管
工業標準SMD 3535封裝
硅樹脂
齊納二極管，ESD保護

Part No.	波長	輸出功率	電流	電壓	φ	尺寸
UVLED-365-NC2	365 nm	150 mW	500 mA	3.7 V	120°	3.5 x 3.5 x 0.9 mm
UVLED-375-NC2	375 nm	280 mW	500 mA	3.6 V	120°	3.5 x 3.5 x 0.9 mm
UVLED-385-NC2	385 nm	350 mW	500 mA	3.7 V	120°	3.5 x 3.5 x 0.9 mm
UVLED-395-NC2	395 nm	360 mW	500 mA	3.7 V	120°	3.5 x 3.5 x 0.9 mm
UVLED-405-NC2	405 nm	380 mW	500 mA	3.6 V	120°	3.5 x 3.5 x 0.9 mm

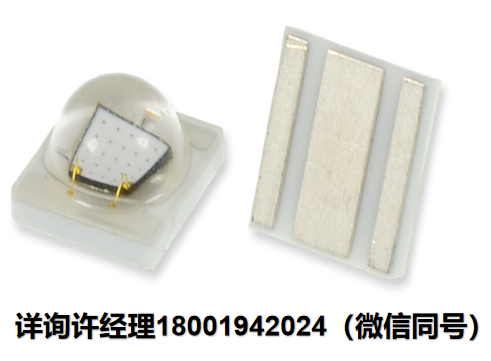

NV1 系列

高功率紫外發光二極管
工業標準SMD 3535封裝
硅樹脂透鏡
齊納二極管，ESD保護

Part No.	波長	輸出功率	電流	電壓	φ	尺寸
UVLED-365-NV1	365 nm	780 mW	500 mA	3.7 V	130°	3.5 x 3.5 x 1.2 mm
UVLED-375-NV1	375 nm	1160 mW	700 mA	3.6 V	130°	3.5 x 3.5 x 1.2 mm
UVLED-385-NV1	385 nm	1340 mW	700 mA	3.7 V	130°	3.5 x 3.5 x 1.2 mm
UVLED-395-NV1	395 nm	1340 mW	700 mA	3.7 V	130°	3.5 x 3.5 x 1.2 mm
UVLED-405-NV1	405 nm	1420 mW	700 mA	3.6 V	140°	3.5 x 3.5 x 1.2 mm
