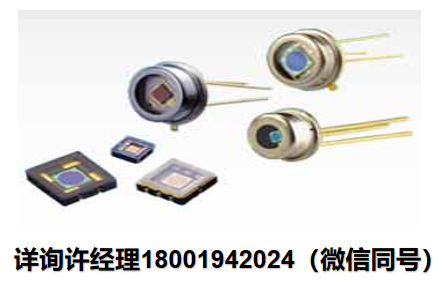

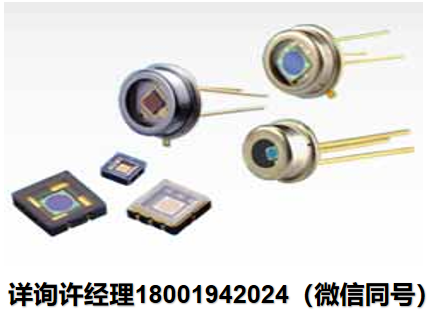

InGaAs PDs采用TO和SMD封裝

光譜范圍從600納米到2200納米，有效面積直徑可達3毫米

低暗電流、高動態阻抗

貨號	光譜范圍	有效面積	封裝	注意
IPD1450-038-5T	1.0 – 1.6 μm	0.35 x 0.35 mm2	TO-18	1.45 μm peak
IPD1450-038-SMT	1.0 – 1.6 μm	0.38 x 0.38 mm2	SMD	1.45 μm peak
PT4113	0.9 – 1.7 μm	? 75 μm	TO-46	NEW
PT4113B	0.9 – 1.7 μm	? 75 μm	TO-46	Ball lensNEW
PT5113	0.9 – 1.7 μm	? 300 μm	TO-46
PT5113B	0.9 – 1.7 μm	? 300 μm	TO-46	Ball lensNEW
LAPD-05-09-17-TO46	0.9 – 1.7 μm	? 0.5 mm	TO-46
LAPD-05-06-17-TO46	0.6 – 1.7 μm	? 0.5 mm	TO-46	VIS extended range from 600-1700 nmNEW
LAPD-1-09-17-TO46	0.9 – 1.7 μm	? 1 mm	TO-46
LAPD-1-06-17-TO46	0.6 – 1.7 μm	? 1 mm	TO-46	VIS extended range from 600-1700 nm
LAPD-1-12-22-TO46	1.2 – 2.2 μm	? 1 mm	TO-46	NIR extended range from 1200-2200 nm
LAPD-1-09-17-LCC	0.9 – 1.7 μm	? 1 mm	6CLCC
LAPD-1-06-17-LCC	0.6 – 1.7 μm	? 1 mm	6CLCC	VIS extended range from 600-1700 nm
PT711	1.0 – 1.65 μm	? 2 mm	TO-39	EOL, stock available
IPD1450-200-SMB	1.55 μm peak	2 x 2 mm2	SMD	5.0 x 5.25 x 1.0 mm
LAPD-2-09-17-TO39	0.9 – 1.7 μm	? 1.9 mm	TO-39
LAPD-2-06-17-TO39	0.6 – 1.7 μm	? 1.9 mm	TO-39	VIS extended range from 600-1700 nm
LAPD-2-12-22-TO39	1.2 – 2.2 μm	? 1.9 mm	TO-39	NIR extended range from 1200-2200 nm
LAPD-2-09-17-LCC	0.9 – 1.7 μm	? 1.9 mm	8CLCC
LAPD-2-06-17-LCC	0.6 – 1.7 μm	? 1.9 mm	8CLCC	VIS extended range from 600-1700nm
LAPD-3-09-17-TO39	0.9 – 1.7 μm	? 3 mm	TO-39
EPD-1300-3-0.2	800 – 1750 nm	0.032 mm2	3 mm epoxy	EOL, stock available

焦平面InGaAs陣列光電二極管

二維InGaAs陣列320×256像素，近紅外高靈敏度，
極低噪聲、高動態范圍、室溫工作
波長范圍:900 – 1700納米，像素寬度:30米，響應度0.8安培/瓦，量子效率> 70%

貨號	光譜范圍	可操作性	數組大小	封裝	注意
FPA320x256-980	0.9 -1.7 μm	98 %	320 x 256 pixel	44-pin Ceramic LCC	10 MHz, ARC wind.
FPA320x256-990	0.9 -1.7 μm	99 %	320 x 256 pixel	44-pin Ceramic LCC	10 MHz, ARC wind.
FPA320x256-999	0.9 -1.7 μm	99.9 %	320 x 256 pixel	44-pin Ceramic LCC	10 MHz, ARC wind.
FPA320x256-100	0.9 -1.7 μm	>99.95 %	320 x 256 pixel	44-pin Ceramic LCC	10 MHz, ARC wind.
