Bandpass Filters帶通濾波器 BP-0456-042 nm
標準帶通濾波器庫存，以先前銷售為準(波長范圍:紫外、可見、近紅外和紅外)。
一般規(guī)格:
直徑:25.4毫米+0/-0.2毫米。定制尺寸
厚度:在下面的過濾器列表中指定(毫米)，公差為0.2毫米
阻擋:平均< 0.1 %的紫外線阻擋高
斜率:< 5 %定義為:
光譜測量
每種濾光器類型都提供了室溫和垂直入射角下的光譜曲線。

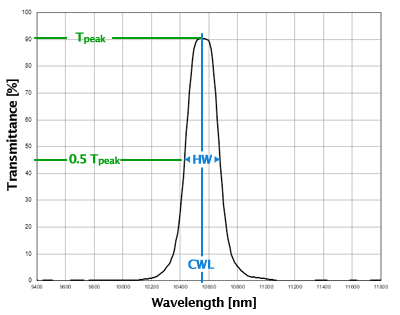

描述:BP-CWL-HW單位為納米(HW 50% t峰值)
| Description | Substrate | Thk | CWL +/- tol | HW +/- tol | Transm > % | Block high | ||
|---|---|---|---|---|---|---|---|---|
| BP-0456-042 nm | Cemented | 5 | 5 | 5 | 50 | 1200 | ||
| BP-0492-042 nm | Colour glass | 2 | 5 | 5 | 70 | 1200 | ||
| BP-0500-040 nm | Cemented | 4 | 5 | 5 | 50 | 1200 | ||
| BP-0555-036 nm | Cemented | 2.5 | 5 | 5 | 60 | 1200 | ||
| BP-0560-120 nm | Cemented | 2.5 | 10 | 10 | 70 | 1200 | ||
| BP-0567-040 nm | Cemented | 3 | 5 | 5 | 60 | 1200 | ||
| BP-0575-040 nm | Cemented | 3.5 | 5 | 10 | 70 | 1200 | ||
| BP-0658-040 nm | Colour glass | 2 | 5 | 5 | 70 | 1200 | ||
| BP-0662-040 nm | Cemented | 3 | 5 | 5 | 70 | 1200 | ||
| BP-0669-040 nm | Cemented | 3 | 5 | 5 | 60 | 1200 | ||
| BP-0685-040 nm | Colour glass | 2 | 7 | 7 | 70 | 1200 | ||
| BP-0700-024 nm | Cemented | 4 | 5 | 5 | 60 | 1200 | ||
| BP-0750-040 nm | Colour glass | 1.8 | 7 | 7 | 70 | 1200 | ||
| BP-0810-100 nm | Glass | 3 | 10 | 10 | 70 | 1200 | ||
| BP-0850-050 nm | Cemented | 3 | 10 | 10 | 70 | 1200 | ||
| BP-0857-025 nm | Cemented | 3 | 5 | 3 | 60 | 1200 | ||
| BP-0890-070 nm | Glass | 0.5 | 20 | 20 | 70 | 1200 | ||
| BP-0907-055 nm | Cemented | 1.5 | 5 | 5 | 60 | 1200 | ||
| BP-0980-056 nm | Cemented | 2 | 10 | 10 | 65 | 1200 | ||
| BP-1020-055 nm | Cemented | 1 | 10 | 10 | 70 | 1200 | ||
| BP-1112-060 nm | Glass | 1.1 | 10 | 5 | 50 | 3000 | ||
| BP-1400-100 nm | Cemented | 0.8 | 20 | 20 | 60 | 3200 | ||
| BP-1535-080 nm | N-bk7 | 1 | 6 | 6 | 75 | 2500 | ||
| BP-1570-130 nm | Glass | 0.5 | 15 | 10 | 80 | 2200 | ||
| BP-1595-060 nm | Silicon | 1 | 15 | 10 | 70 | 3350 | ||
| BP-1610-060 nm | Cemented | 1 | 5 | 6 | 70 | 3500 | ||
| BP-1693-082 nm | Cemented | 1 | 10 | 10 | 60 | 3500 | ||
| BP-1693-140 nm | Cemented | 1 | 10 | 30 | 70 | 3500 | ||
| BP-1695-095 nm | Cemented | 1 | 20 | 20 | 70 | 3500 | ||
| BP-1745-100 nm | Cemented | 1 | 20 | 15 | 60 | 3500 | ||
| BP-1775-100 nm | Cemented | 1 | 20 | 15 | 60 | 3500 | ||
| BP-1835-080 nm | Cemented | 0.8 | 15 | 20 | 60 | 3500 | ||
| BP-1843-075 nm | Cemented | 1 | 15 | 10 | 60 | 3500 | ||
| BP-1850-080 nm | Cemented | 0.8 | 20 | 20 | 70 | 3500 | ||
| BP-1852-037 nm | Cemented | 1 | 20 | 20 | 70 | 3500 | ||
| BP-1865-080 nm | Cemented | 0.8 | 20 | 20 | 70 | 3500 | ||
| BP-1865-100 nm | Glass | 0.8 | 20 | 20 | 70 | 3500 | ||
| BP-1875-107 nm | Cemented | 0.8 | 20 | 20 | 70 | 3500 | ||
| BP-1887-065 nm | Cemented | 1 | 20 | 20 | 70 | 3500 | ||
| BP-1915-080 nm | Cemented | 0.8 | 20 | 20 | 70 | 3500 | ||
| BP-1920-110 nm | Cemented | 0.8 | 20 | 20 | 70 | 3500 | ||
| BP-1930-070 nm | Cemented | 0.8 | 20 | 20 | 70 | 3500 | ||
| BP-1930-112 nm | Cemented | 0.8 | 20 | 20 | 70 | 3500 | ||
| BP-1933-080 nm | Cemented | 0.8 | 20 | 20 | 70 | 3500 | ||
| BP-1938-105 nm | Cemented | 0.8 | 20 | 20 | 70 | 3500 | ||
| BP-1940-111 nm | Cemented | 1 | 20 | 20 | 70 | 3500 | ||
| BP-1945-080 nm | Cemented | 0.8 | 10 | 20 | 60 | 3300 | ||
| BP-1946-110 nm | Glass | 0.8 | 20 | 20 | 70 | 3500 | ||
| BP-1951-045 nm | Cemented | 1 | 5 | 5 | 60 | 3300 | ||
| BP-1958-080 nm | Cemented | 0.8 | 20 | 20 | 70 | 3500 | ||
| BP-1958-127 nm | Cemented | 0.8 | 20 | 20 | 70 | 3500 | ||
| BP-1965-080 nm | Cemented | 1 | 20 | 20 | 70 | 3500 | ||
| BP-1965-105 nm | Cemented | 0.8 | 20 | 20 | 70 | 3500 | ||
| BP-1965-115 nm | Cemented | 1.85 | 10 | 5 | 60 | 30000 | ||
| BP-2010-113 nm | Cemented | 0.8 | 15 | 15 | 60 | 3500 | ||
| BP-2080-090 nm | Cemented | 0.8 | 20 | 20 | 70 | 3500 | ||
| BP-2090-076 nm | Cemented | 1 | 20 | 20 | 70 | 3500 | ||
| BP-2100-075 nm | Cemented | 1.5 | 20 | 20 | 70 | 3500 | ||
| BP-2120-090 nm | Cemented | 1 | 15 | 20 | 60 | 3500 | ||
| BP-2140-110 nm | Cemented | 1 | 10 | 20 | 60 | 3500 | ||
| BP-2446-105 nm | N-bk7 | 1 | 30 | 20 | 65 | 30000 | ||
| BP-2710-200 nm | Sapphire | 1 | 30 | 30 | 70 | 30000 | ||
| BP-3250-100 nm | Quartz | 0.5 | 20 | 20 | 70 | 30000 | ||
| BP-3330-145 nm | Sapphire | 0.5 | 30 | 20 | 70 | 30000 | ||
| BP-3350-120 nm | Sapphire | 0.5 | 20 | 20 | 80 | 30000 | ||
| BP-3350-200 nm | Sapphire | 0.5 | 50 | 50 | 70 | 30000 | ||
| BP-3365-160 nm | Sapphire | 1 | 20 | 20 | 80 | 30000 | ||
| BP-3400-102 nm | Sapphire | 1 | 40 | 10 | 70 | 30000 | ||
| BP-3416-135 nm | Sapphire | 0.5 | 20 | 20 | 70 | 30000 | ||
| BP-3420-075 nm | Sapphire | 1 | 30 | 15 | 70 | 30000 | ||
| BP-3429-140 nm | Sapphire | 0.5 | 20 | 20 | 70 | 30000 | ||
| BP-3440-190 nm | Silicon | 0.5 | 50 | 30 | 70 | 11000 | ||
| BP-3580-170 nm | Sapphire | 1 | 30 | 10 | 60 | 30000 | ||
| BP-3600-090 nm | Sapphire | 1 | 25 | 20 | 70 | 30000 | ||
| BP-3690-110 nm | Silicon | 1 | 20 | 20 | 65 | 6000 | ||
| BP-3715-086 nm | Sapphire | 0.5 | 30 | 10 | 70 | 14000 | ||
| BP-3800-180 nm | Sapphire | 0.5 | 40 | 20 | 70 | 30000 | ||
| BP-3887-110 nm | Sapphire | 0.5 | 40 | 15 | 65 | 30000 | ||
| BP-3900-200 nm | Sapphire | 1 | 40 | 20 | 70 | 30000 | ||
| BP-3900-200 nm | Sapphire | 1 | 40 | 20 | 70 | 30000 | ||
| BP-3985-115 nm | Sapphire | 1 | 20 | 20 | 70 | 30000 | ||
| BP-4045-150 nm | Silicon | 0.3 | 40 | 20 | 70 | 6000 | ||
| BP-4190-195 nm | Sapphire | 0.5 | 40 | 20 | 70 | 7000 | ||
| BP-4220-125 nm | Sapphire | 0.5 | 40 | 20 | 70 | 30000 | ||
| BP-4220-200 nm | Silicon | 0.5 | 40 | 25 | 60 | 10000 | ||
| BP-4225-120 nm | Sapphire | 0.5 | 30 | 20 | 70 | 30000 | ||
| BP-4225-150 nm | Silicon | 1 | 40 | 20 | 70 | 6000 | ||
| BP-4240-195 nm | Sapphire | 0.5 | 20 | 10 | 80 | 30000 | ||
| BP-4245-090 nm | Silicon | 0.55 | 30 | 20 | 65 | 8000 | ||
| BP-4260-195 nm | Sapphire | 0.5 | 20 | 20 | 80 | 30000 | ||
| BP-4265-120 nm | Sapphire | 0.5 | 40 | 20 | 70 | 30000 | ||
| BP-4275-090 nm | Silicon | 0.55 | 30 | 20 | 70 | 8000 | ||
| BP-4350-180 nm | Sapphire | 1 | 60 | 60 | 70 | 30000 | ||
| BP-4390-132 nm | Sapphire | 1 | 20 | 13 | 60 | 30000 | ||
| BP-4450-130 nm | Silicon | 0.5 | 30 | 30 | 75 | 10000 | ||
| BP-4475-260 nm | Sapphire | 0.5 | 50 | 30 | 75 | 30000 | ||
| BP-4550-320 nm | Sapphire | 1 | 50 | 30 | 70 | 30000 | ||
| BP-4560-220 nm | Sapphire | 1 | 50 | 30 | 70 | 30000 | ||
| BP-4630-180 nm | Sapphire | 1 | 40 | 20 | 70 | 30000 | ||
| BP-4665-240 nm | Sapphire | 1 | 40 | 30 | 70 | 30000 | ||
| BP-4675-160 nm | Sapphire | 1 | 40 | 20 | 70 | 30000 | ||
| BP-4700-600 nm | Silicon | 1 | 60 | 60 | 75 | 11000 | ||
| BP-4700-690 nm | Silicon | 1 | 60 | 60 | 75 | 11000 | ||
| BP-4710-140 nm | Sapphire | 1 | 40 | 20 | 70 | 30000 | ||
| BP-4740-140 nm | Sapphire | 1 | 40 | 20 | 70 | 30000 | ||
| BP-4750-190 nm | Silicon | 0.5 | 50 | 20 | 70 | 8000 | ||
| BP-4755-136 nm | Sapphire | 1 | 40 | 20 | 70 | 30000 | ||
| BP-4775-175 nm | Silicon | 0.5 | 40 | 20 | 70 | 10000 | ||
| BP-4950-200 nm | Silicon | 0.5 | 25 | 15 | 70 | 11000 | ||
| BP-4960-148 nm | Silicon | 0.5 | 25 | 15 | 70 | 14500 | ||
| BP-5058-100 nm | Sapphire | 0.5 | 45 | 20 | 70 | 30000 | ||
| BP-5220-300 nm | Sapphire | 1 | 50 | 35 | 50 | 30000 | ||
| BP-5263-210 nm | Sapphire | 0.76 | 85 | 35 | 60 | 30000 | ||
| BP-5275-215 nm | Sapphire | 1 | 50 | 30 | 65 | 30000 | ||
| BP-5290-300 nm | Sapphire | 1 | 50 | 35 | 60 | 30000 | ||
| BP-5290-600 nm | Silicon | 1 | 60 | 60 | 75 | 11000 | ||
| BP-5300-200 nm | Sapphire | 1 | 30 | 20 | 70 | 30000 | ||
| BP-5320-265 nm | Sapphire | 1 | 50 | 35 | 60 | 30000 | ||
| BP-5332-207 nm | Sapphire | 1 | 30 | 10 | 60 | 30000 | ||
| BP-5346-350 nm | Silicon | 1 | 20 | 10 | 75 | 10500 | ||
| BP-6465-230 nm | Silicon | 1 | 40 | 35 | 70 | 10500 | ||
| BP-6500-230 nm | Silicon | 1 | 40 | 35 | 70 | 10500 | ||
| BP-6560-230 nm | Germanium | 1 | 40 | 35 | 70 | 10500 | ||
| BP-6600-320 nm | Silicon | 1 | 50 | 30 | 60 | 10500 | ||
| BP-7675-242 nm | Silicon | 0.5 | 50 | 30 | 70 | 12000 | ||
| BP-7720-480 nm | Silicon | 1 | 100 | 80 | 80 | 18000 | ||
| BP-7740-250 nm | Germanium | 0.5 | 40 | 20 | 70 | 13000 | ||
| BP-8008-439 nm | Germanium | 0.5 | 80 | 70 | 80 | 14000 | ||
| BP-8100-230 nm | Germanium | 0.5 | 40 | 30 | 70 | 14000 | ||
| BP-8135-250 nm | Germanium | 0.5 | 50 | 30 | 70 | 14000 | ||
| BP-8180-250 nm | Germanium | 0.5 | 50 | 30 | 70 | 14000 | ||
| BP-8248-452 nm | Germanium | 1 | 100 | 100 | 80 | 13500 | ||
| BP-8645-550 nm | Germanium | 1 | 50 | 50 | 70 | 13500 | ||
| BP-8780-340 nm | Germanium | 0.5 | 60 | 35 | 60 | 15000 | ||
| BP-8850-300 nm | Germanium | 0.5 | 30 | 20 | 70 | 14000 | ||
| BP-8900-500 nm | Germanium | 1 | 60 | 60 | 70 | 15000 | ||
| BP-8950-330 nm | Germanium | 0.5 | 60 | 40 | 70 | 14000 | ||
| BP-9127-545 nm | Germanium | 1 | 80 | 80 | 70 | 13500 | ||
| BP-9480-613 nm | Germanium | 1 | 80 | 100 | 70 | 16000 | ||
| BP-10240-663 nm | Germanium | 1 | 100 | 100 | 80 | 15500 | ||
| BP-10485-1035 nm | Germanium | 1 | 100 | 220 | 70 | 16000 | ||
| BP-10600-1060 nm | Germanium | 1 | 100 | 220 | 70 | 16000 | ||
| BP-10600-848 nm | Germanium | 1 | 100 | 100 | 80 | 18500 | ||
| BP-10630-810 nm | Germanium | 1 | 100 | 80 | 75 | 18500 | ||
| BP-10688-744 nm | Germanium | 1 | 110 | 110 | 75 | 16000 | ||
| BP-10730-1150 nm | Germanium | 1 | 100 | 75 | 75 | 16000 | ||
| BP-10740-390 nm | Germanium | 1 | 80 | 40 | 70 | 18000 | ||
| BP-10760-745 nm | Germanium | 1 | 100 | 100 | 70 | 16000 | ||
| BP-12200-750 nm | Germanium | 0.5 | 100 | 100 | 75 | 18000 | ||
| BP-12285-1000 nm | Germanium | 0.5 | 100 | 150 | 70 | 17000 | ||
| BP-12835-958 nm | Germanium | 1 | 140 | 140 | 75 | 17000 | ||
| BP-13600-550 nm | Germanium | 0.5 | 70 | 80 | 75 | 18000 | ||
| BP-13990-1056 nm | Germanium | 1 | 140 | 160 | 70 | 21000 | ||
| BP-14100-850 nm | Germanium | 1 | 100 | 100 | 70 | 16500 | ||
| BP-14195-1127 nm | Germanium | 1 | 300 | 120 | 65 | 18000 | ||
| BP-15118-1260 nm | Germanium | 1 | 310 | 150 | 60 | 20000 |
