長波通濾波片 LP系列 LP-0350 nm
Longwave-pass Filters
標準長波通濾光片，(波長范圍為紫外、可見、近紅外和紅外)。
一般規(guī)格:
直徑:25.4毫米+0/-0.2毫米。定制尺寸
厚度:在下面的過濾器列表中指定(毫米)，公差為0.2毫米
阻塞:平均低于通過紫外線的通帶0.1%

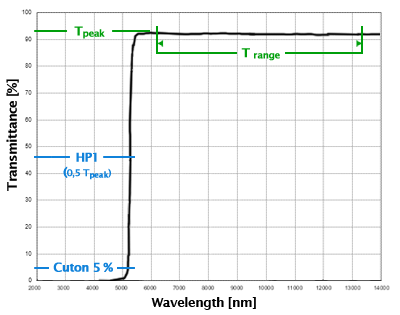

斜率:< 5 %定義為:
光譜測量
每種濾光器類型都提供了室溫和垂直入射角下的光譜曲線。
描述:LP-以納米為單位的截止值(5 %透射時的截止值)
| Description | Substrate | Thk | Cuton 5 % +/- tol | Transm > % | T Range high | ||
|---|---|---|---|---|---|---|---|
| LP-0350 nm | Glass | 0.5 | 10 | 70 | 2500 | ||
| LP-0590 nm | Colour glass | 3 | 30 | 70 | 900 | ||
| LP-0855 nm | Glass | 0.55 | 20 | 70 | 2500 | ||
| LP-0880 nm | Glass | 0.5 | 10 | 70 | 2500 | ||
| LP-0940 nm | N-bk7 | 1 | 30 | 70 | 2500 | ||
| LP-1050 nm | B270 | 1 | 30 | 80 | 2000 | ||
| LP-1200 nm | B270 | 1 | 30 | 70 | 2500 | ||
| LP-1240 nm | B270 | 1 | 30 | 70 | 2500 | ||
| LP-1270 nm | B270 | 1 | 30 | 70 | 2500 | ||
| LP-1300 nm | Silicon | 1 | 30 | 70 | 3000 | ||
| LP-1455 nm | Silicon | 1 | 50 | 70 | 3500 | ||
| LP-1600 nm | Silicon | 1 | 50 | 70 | 3500 | ||
| LP-1830 nm | Glass | 1 | 40 | 70 | 2700 | ||
| LP-1850 nm | Germanium | 1 | 50 | 70 | 3500 | ||
| LP-1897 nm | Cemented | 1 | 50 | 70 | 2700 | ||
| LP-2000 nm | Germanium | 1 | 50 | 70 | 4000 | ||
| LP-2505 nm | Germanium | 1 | 100 | 70 | 5000 | ||
| LP-3500 nm | Germanium | 1 | 100 | 65 | 12000 | ||
| LP-4700 nm | Sapphire | 0.47 | 100 | 70 | 5000 | ||
| LP-6150 nm | Silicon | 1 | 250 | 70 | 8500 | ||
| LP-6600 nm | Germanium | 1 | 200 | 70 | 12000 | ||
| LP-6750 nm | Germanium | 1 | 250 | 70 | 9500 | ||
| LP-7600 nm | Germanium | 0.5 | 200 | 70 | 12500 | ||
| LP-8210 nm | Germanium | 0.5 | 150 | 70 | 15000 | ||
| LP-8700 nm | Germanium | 0.5 | 100 | 75 | 12000 | ||
| LP-9000 nm | Germanium | 0.5 | 200 | 70 | 12000 |
