Spectrogon窄帶寬濾波片NB-1722-025nm中心波長1722nm

Spectrogon開發和制造光學濾波器和其他薄膜涂層以及用于各種應用和工業的全息光柵。

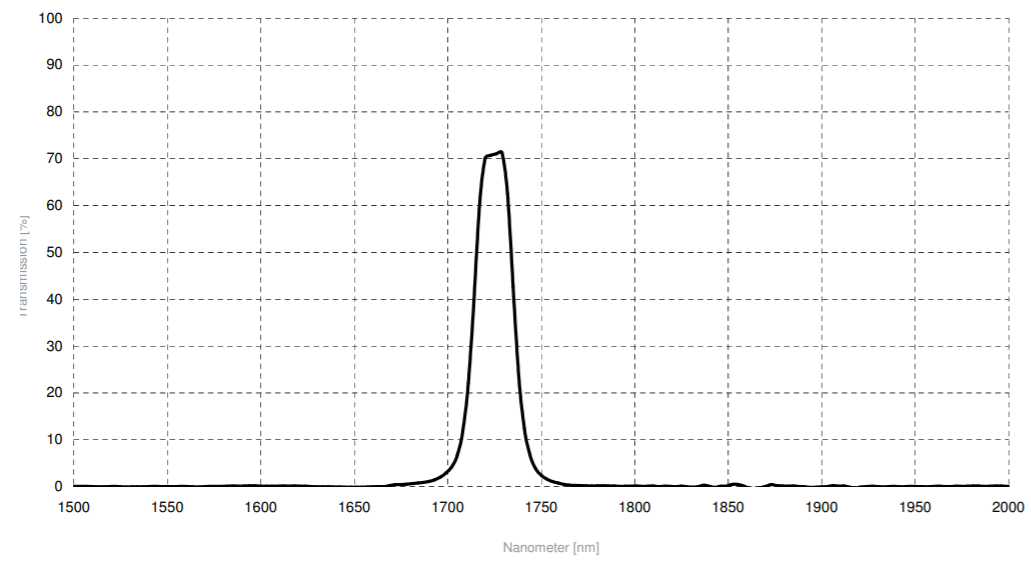

Data collection range: 1000 – 2050 nm

Diagram range: 1500 – 2000 nm

Actual values:
CWL = 1724,7 nm
HW = 22,8 nm
Cuton 5% = 1703 nm
Cutoff 5% = 1745,8 nm
HP1 = 1713,3 nm
HP2 = 1736,1 nm
Tpeak = 71,32 %
Tavg = 68,65 %
Slope 1 = 0,8 %
Slope 2 = 0,8 %

Specifications:
CWL: +10/-10 nm
HW: +5/-5 nm
Tmin: 70 %
Blocking: 3500 nm

Measurement conditions:
Temperature: 23 °C
AOI: 0 deg
