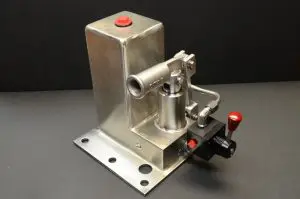

帶四通閥的泵用于雙作用氣缸。該閥門允許泵以全泵壓力推進或收回雙作用氣缸。
四通閥可以安裝在P、PH和CP系列的任何泵上。要訂購帶四通閥的泵，只需在泵型號后添加“-4V”（例如P2A-160-4V）。
特點：
與不帶四通閥的型號具有相同的特點
典型應(yīng)用：
液體工業(yè)輸送
操作壓力機、閥門、門、安全設(shè)備
| Item # | Maximum Pressure Rating | Piston Diameter | Reservoir Volume | Series | Mounting | Volume per Stroke |
|---|
| CP13-160-4V | 10000 PSI | 1 1/4-1/2 in | 160 in3 | CP | Two Speed, Base Mounted | 1.84 in3 |
| CP13-250-4V | 10000 PSI | 1 1/4-1/2 in | 250 in3 | CP | Two Speed, Base Mounted | 1.84 in3 |
| CP13-80-4V | 10000 PSI | 1 1/4-1/2 in | 80 in3 | CP | Two Speed, Base Mounted | 1.84 in3 |
| CP14-160-4V | 10000 PSI | 1 1/2-1/2 in | 160 in3 | CP | Two Speed, Base Mounted | 2.65 in3 |
| CP14-250-4V | 10000 PSI | 1 1/2-1/2 in | 250 in3 | CP | Two Speed, Base Mounted | 2.65 in3 |
| CP14-80-4V | 10000 PSI | 1 1/2-1/2 in | 80 in3 | CP | Two Speed, Base Mounted | 2.65 in3 |
| CP15-160-4V | 10000 PSI | 2-1/2 in | 160 in3 | CP | Two Speed, Base Mounted | 4.71 in3 |
| CP15-250-4V | 10000 PSI | 2-1/2 in | 250 in3 | CP | Two Speed, Base Mounted | 4.71 in3 |
| CP15-80-4V | 10000 PSI | 2-1/2 in | 80 in3 | CP | Two Speed, Base Mounted | 4.71 in3 |
| P1A-160-4V | 10000 PSI | 1/2 in | 160 in3 | P | Single Speed, Base Mounted | 0.29 in3 |
| P1A-250-4V | 10000 PSI | 1/2 in | 250 in3 | P | Single Speed, Base Mounted | 0.29 in3 |
| P1A-80-4V | 10000 PSI | 1/2 in | 80 in3 | P | Single Speed, Base Mounted | 0.29 in3 |
| P1A-LR-4V | 10000 PSI | 1/2 in | in3 | P-LR | Base Mounted | 0.29 in3 |
| P2A-160-4V | 5000 PSI | 3/4 in | 160 in3 | P | Single Speed, Base Mounted | 0.66 in3 |
| P2A-250-4V | 5000 PSI | 3/4 in | 250 in3 | P | Single Speed, Base Mounted | 0.66 in3 |
| P2A-80-4V | 5000 PSI | 3/4 in | 80 in3 | P | Single Speed, Base Mounted | 0.66 in3 |
| P2A-LR-4V | 5000 PSI | 3/4 in | in3 | P-LR | Base Mounted | 0.66 in3 |
| P3A-160-4V | 2500 PSI | 1 in | 160 in3 | P | Single Speed, Base Mounted | 1.18 in3 |
| P3A-250-4V | 2500 PSI | 1 in | 250 in3 | P | Single Speed, Base Mounted | 1.18 in3 |
| P3A-80-4V | 2500 PSI | 1 in | 80 in3 | P | Single Speed, Base Mounted | 1.18 in3 |
| P3A-LR-4V | 2500 PSI | 1 in | in3 | P-LR | Base Mounted | 1.18 in3 |
| P4A-160-4V | 1500 PSI | 1 1/4 in | 160 in3 | P | Single Speed, Base Mounted | 1.84 in3 |
| P4A-250-4V | 1500 PSI | 1 1/4 in | 250 in3 | P | Single Speed, Base Mounted | 1.84 in3 |
| P4A-80-4V | 1500 PSI | 1 1/4 in | 80 in3 | P | Single Speed, Base Mounted | 1.84 in3 |
| P4A-LR-4V | 1500 PSI | 1 1/4 in | in3 | P-LR | Base Mounted | 1.84 in3 |
| P5A-160-4V | 1000 PSI | 1 1/2 in | 160 in3 | P | Single Speed, Base Mounted | 2.65 in3 |
| P5A-250-4V | 1000 PSI | 1 1/2 in | 250 in3 | P | Single Speed, Base Mounted | 2.65 in3 |
| P5A-80-4V | 1000 PSI | 1 1/2 in | 80 in3 | P | Single Speed, Base Mounted | 2.65 in3 |
| P5A-LR-4V | 1000 PSI | 1 1/2 in | in3 | P-LR | Base Mounted | 2.65 in3 |
| P6A-160-4V | 500 PSI | 2 in | 160 in3 | P | Single Speed, Base Mounted | 4.71 in3 |
| P6A-250-4V | 500 PSI | 2 in | 250 in3 | P | Single Speed, Base Mounted | 4.71 in3 |
| P6A-80-4V | 500 PSI | 2 in | 80 in3 | P | Single Speed, Base Mounted | 4.71 in3 |
| P6A-LR-4V | 500 PSI | 2 in | in3 | P-LR | Base Mounted | 4.71 in3 |
