Vacuum heat treatment furnace type VWC真空熱處理爐

Special functions:

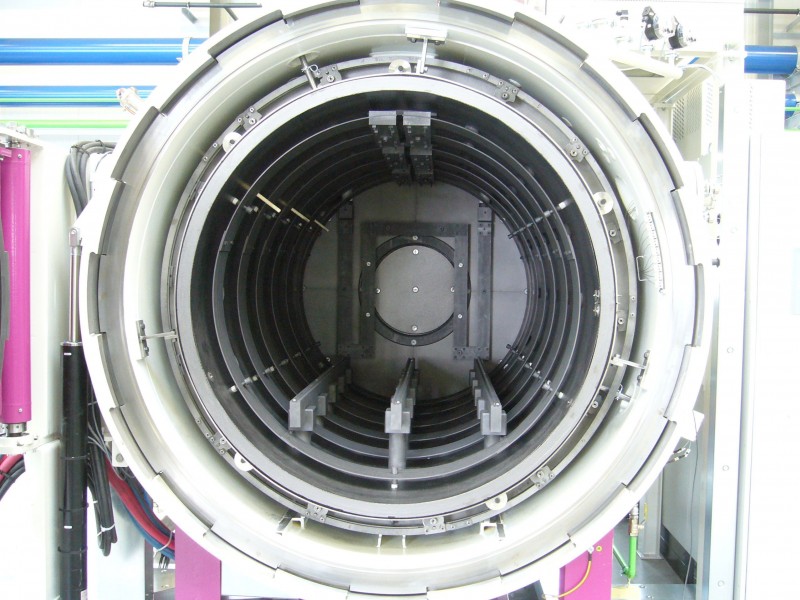

  • heating chamber made of?one graphite cylinder, fixed with no pins which means less thermal bridges
  • metallic design of the heating chamber is possible
  • convective blower manufactured of one CC fan wheel – more efficient and higher uniformity during convective heating (see photo on the right)
  • quenching pressure up to?20 bar is possible
  • highest quenching rate by special positioning of nozzles for the quenching gas
  • full speed of the gas blower under vacuum is possible

Standard sizes:

Type ? ? ? ? usable?dimension?(WxHxL in mm)
VWC 446 ? ? ? ? 400 x 400 x 600
VWC 669 ? ? ? ? 600 x 600 x 900
VWC 9812 ? ? ? ?900 x 800 x 1200
