Taylor測功機的經濟高效的便攜式發動機Dynos是一種水制動式系統，適用于高達1250馬力（932千瓦）和3000 ft-lb（4068 N）扭矩的柴油應用。在幾分鐘內將您的產品安裝在發動機上，實現快速、方便和可靠的測試。不需要特殊的發動機支架或測試單元，您可以在室內或室外進行測試，即使發動機在運輸箱中也是如此。入門級機械師可以輕松地進行初始磨合運行、全功率運行和調速器檢查。

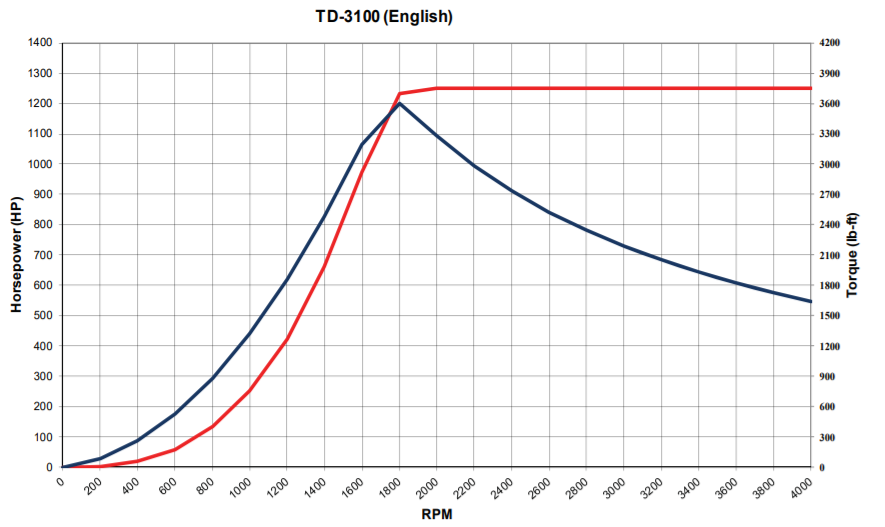

TD-3100 Portable Engine Dynamometer

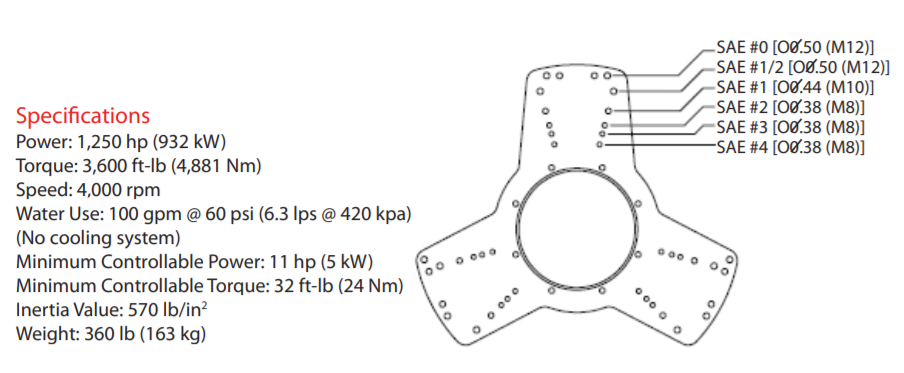

Specifi cations
Power: 1,250 hp (932 kW)
Torque: 3,600 ft-lb (4,881 Nm)
Speed: 4,000 rpm
Water Use: 100 gpm @ 60 psi (6.3 lps @ 420 kpa) (No cooling system)
Minimum Controllable Power: 11 hp (5 kW)
Minimum Controllable Torque: 32 ft-lb (24 Nm)
Inertia Value: 570 lb/in2
Weight: 360 lb (163 kg)

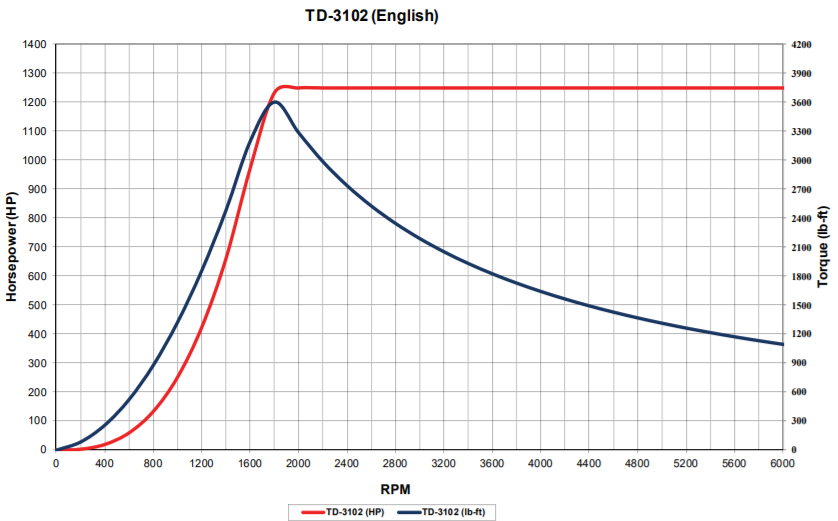

TD-3102 Portable Engine Dynamometer

Specifi cations
Power: 1,250 hp (932 kW)
Torque: 3,600 ft-lb (4,881 Nm)
Speed: 6,000 rpm
Water Use: 100 gpm @ 60 psi (6.3 lps @ 420 kpa) (No cooling system)
Minimum Controllable Power: 11 hp (5 kW)
Minimum Controllable Torque: 32 ft-lb (24 Nm)
Inertia Value: 570 lb/in2
Weight: 360 lb (163 kg)
