FEP Multi-Conductor Instrumentation Feedthroughs

All FEP conductors are rated at 500 VAC or 700 VDC with a maximum current rating of 7 amps per solid pin and 2 amps per tubular pin.

Model Flange OD Conductor Type Number of Conductors
FEP-275-8T 2.75″ OD Tubular 8
FEP-133-10 1.33″ OD Solid 10
FEP-275-10 2.75″ OD Solid 10
FEP-275-20 2.75″ OD Solid 20

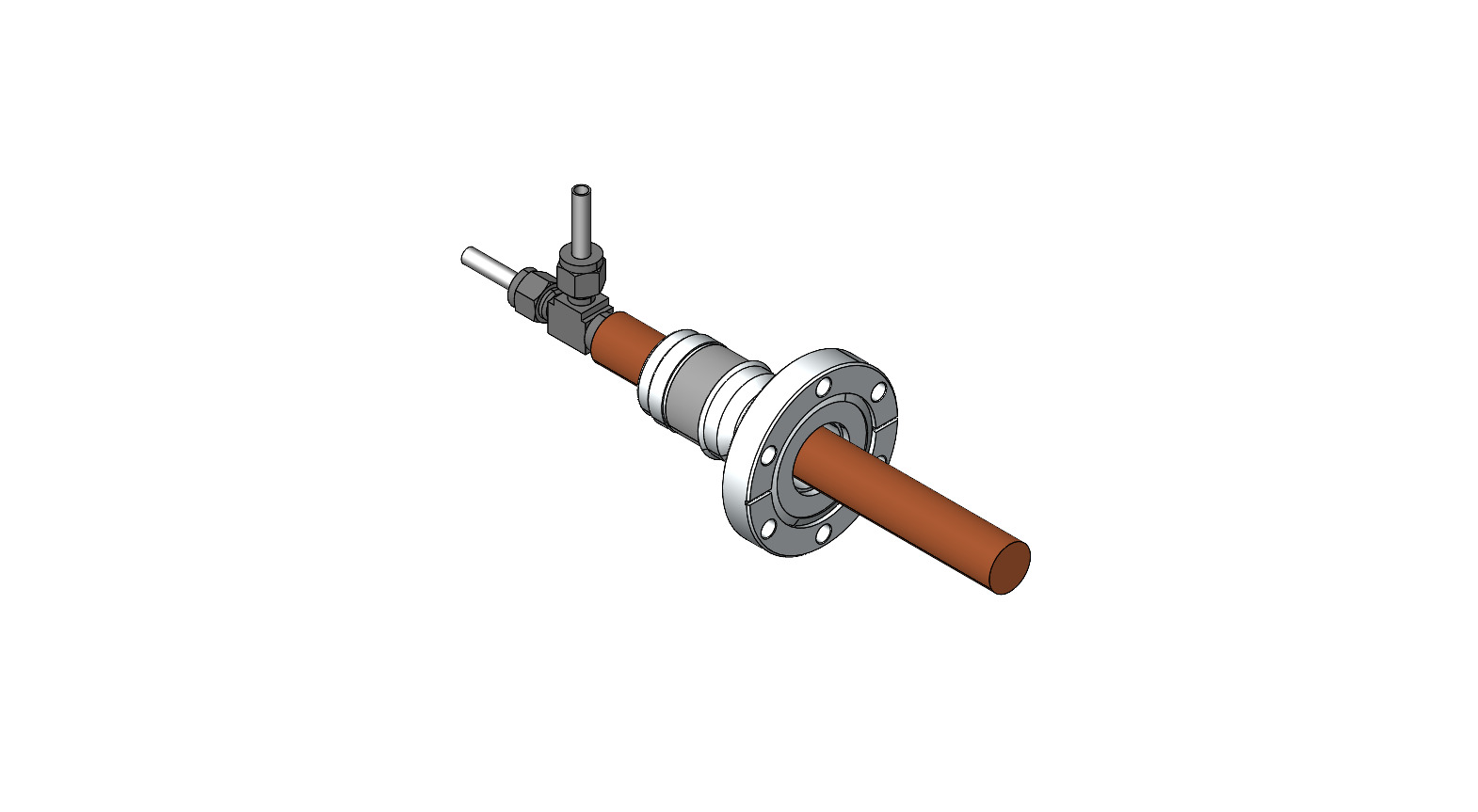

FHC Series High Current Electrical Feedthroughs

These feedthroughs provide high current path to the vacuum chamber.? The conductors are constructed of OFE copper and are available in water cooled and solid conductor models.

  • Maximum current: 600 A1,600 A (water cooled)
  • Maximum voltage: 3,000 V (below 10-4?Torr)
  • 2.75″ O.D flange
  • Temperature Range: -200°C to 450°C
  • Requires CMC-150 connectors

FHV Series High Voltage Electrical Feedthroughs

The FHV series feedthroughs provides HV access to the vacuum chamber.? They include single or dual conductor models with mating exterior connector.

Model Flange OD Conductors Max Voltage Max Current
FHV.5-133-2 1.33″ OD 2 500 VDC 10 A
FHV3-133-2 1.33″ OD 2 3,000 VDC 15 A

* These voltage ratings are for below 10-4?Torr



FMC Series Medium Current Electrical Feedthroughs



These feedthroughs are used in a variety of applications where a significant amount of power is to be transferred into a vacuum system.? The feedthrough conductors are constructed of OFE copper and are available in two styles, solid and hollow tube.? The tube option allows for water cooling or special coaxial construction.

Available in 1, 2, 3 or 4 conductor with 2.75″ OD flange and single conductor with 1.33″ OD flange.

  • Maximum current:
    • 150 A solid 1/4″ (rod)
    • 10 A 1/4″ (tube – 0.032 wall)
  • Maximum voltage: 5,000 V
  • Temperature Range: -200°C to 450°C
  • Requires PMC-150 connectors

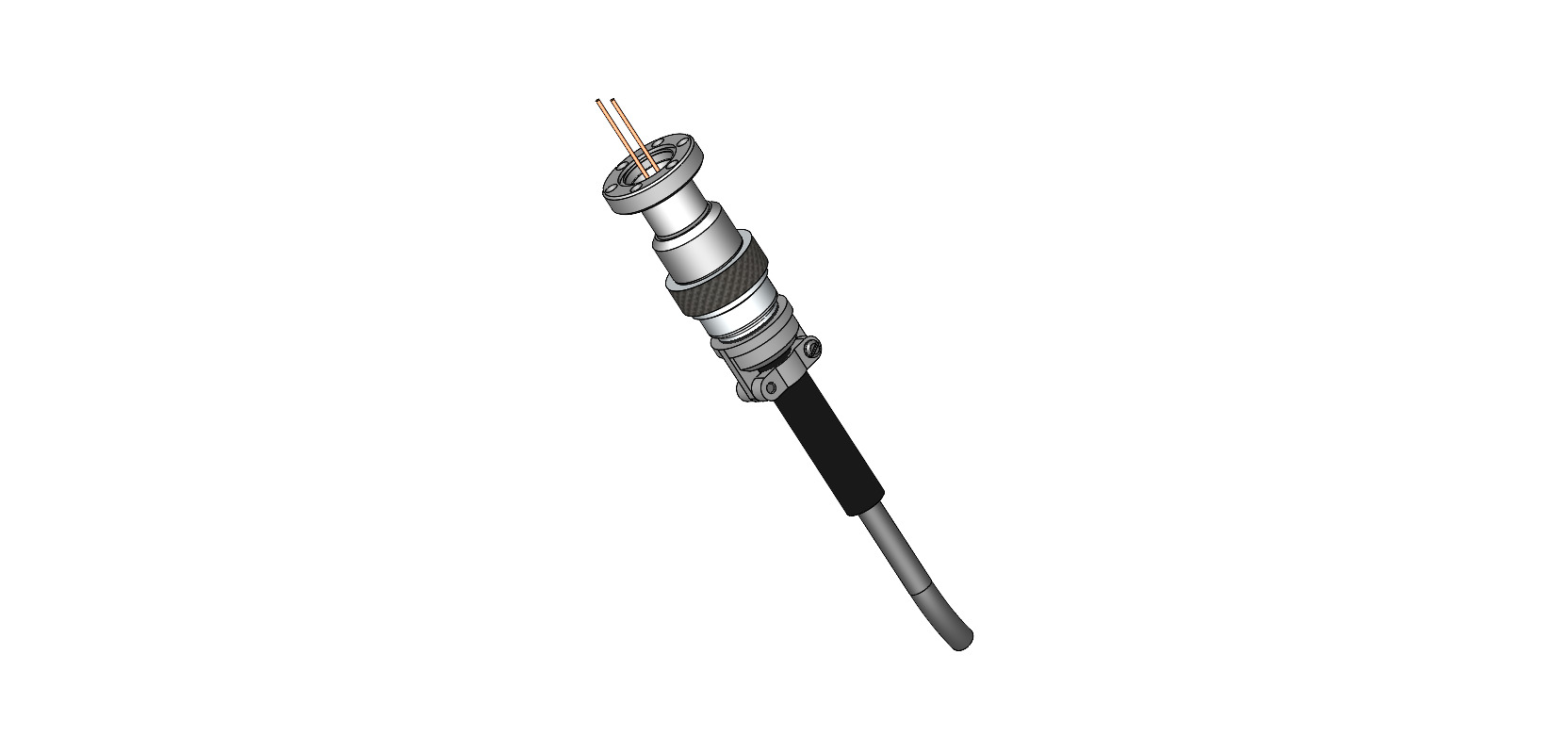

Instrumentation Feedthroughs

Instrumentation feedthroughs provide UHV feedthrough access for a variety of cable types.? The 304SS conductors have a maximum current rating of 3 amps.

Model Flange OD Conductors Cable Type Max Voltage Max Current
FMH 1.33″ OD, 2.75″ OD 1 or 2 MHV 5,000 V 3 A
FBN 1.33″ OD, 2.75″ OD 1 or 2 BNC 500 V 3 A
FSH 1.33″ OD, 2.75″ OD 1, 2 ,3 or 4 SHV 5,000 V 3 A

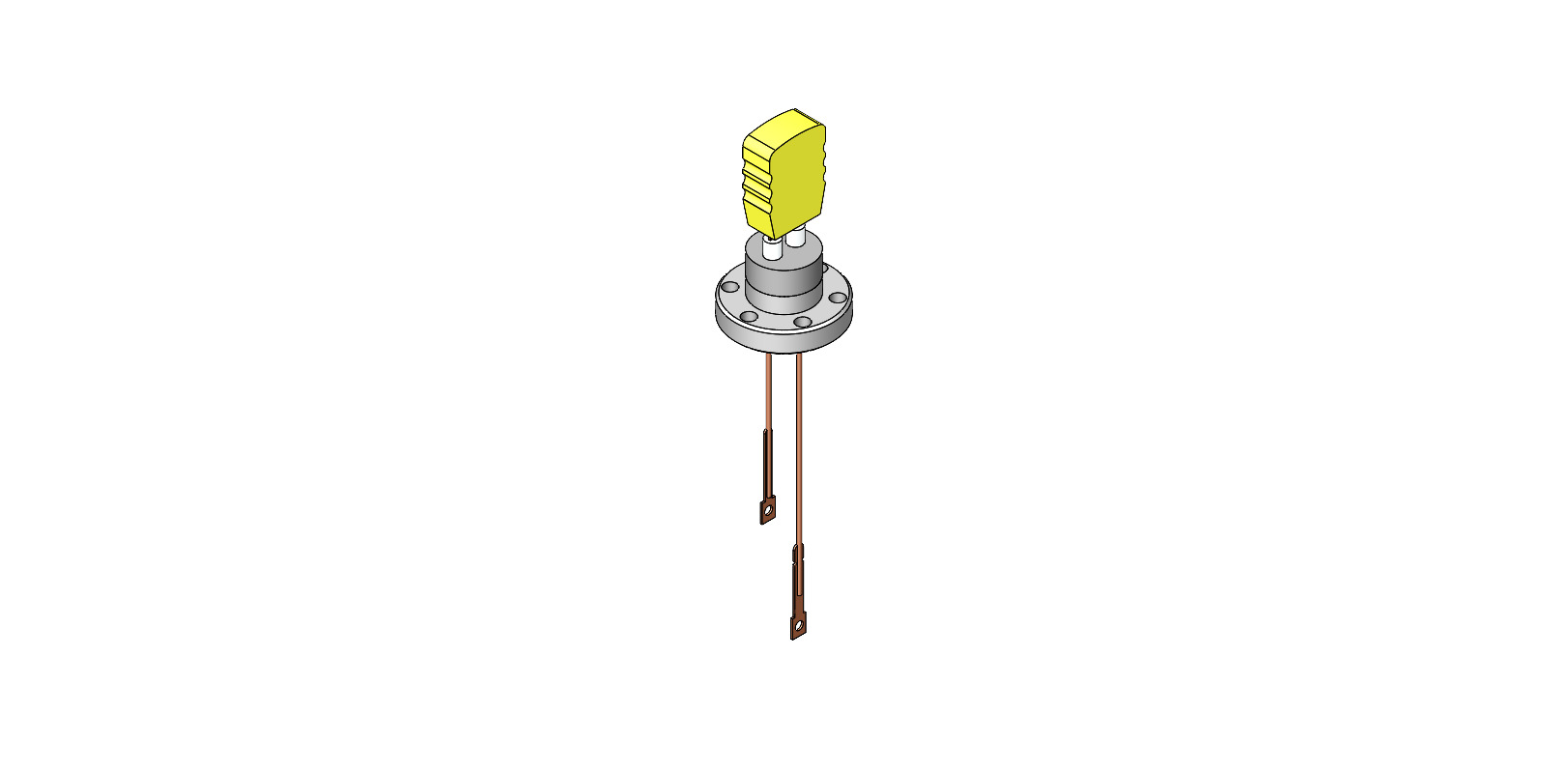

Thermocouple Instrumentation Feedthroughs

FETC series feedthroughs provide UHV feedthrough access for thermocouple instrumentation. All units are supplied with external connectors.

Standard FETC series feedthroughs are supplied with a 1.33″ OD mounting flange and are available with 1 or 2 thermocouple pairs.

Connectors

  • PMC-150 Internal Connector
    • OFE copper, nickel plated
    • 150 A
    • 450°C max. temperature
    • For 1/4″ OD conductor
    • Push-on connector
  • CMC-150 Internal/External Connector
    • OFE copper
    • 450 A
    • 450°C max. temperature
    • For 3/4″ OD to 1/4″ OD conductor
    • Clamp-on connector
  • FEP-10C Connector
    • External connector
    • 10 pin with cable grip
    • Replacement for connectors supplied with FEP-275-10 feedthroughs
  • FEP-20C Connector
    • External connector
    • 20 pin with cable grip
    • Replacement for connectors supplied with FEP-275-20 feedthroughs
  • PLC-100 Internal Push-on Connectors
    • For pins 0.032″ diameter or less
    • 200°C maximum temperature in vacuum
    • 10 amps maximum current
  • PLC-150 Internal Push-on Connectors
    • For pins 0.062″ dia. or less
    • 200°C max. temperature in vacuum
    • 15 amps maximum current
