Thermionics Northwest,Inc公司RC Series – Multiple Crucible Rotary 3kW e-Gun? RC系列多坩堝旋轉電子槍

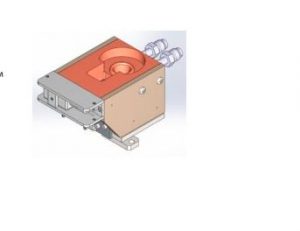

Thermionics RCF Series 3 kW Single Crucible Linear e-Guns™ 3kW電子槍 真空鍍膜 坩堝

Thermionics RCF Series 3 kW Single Crucible Linear e-Guns3kW電子槍 真空鍍膜 坩堝



Thermionics research capacity RCF series single crucible e-Gun™ provides enhanced beam stability and efficient XY sweep with full crucible coverage. The included plug-in emitter and sweep coil assemblies make the e-Gun source easier to service.

提供增強的電子束穩定性和高效的XY掃描,并具有全坩堝覆蓋范圍。

Features

  • True XY sweep with full crucible coverage
  • Sweep coils included with source
  • Enhanced beam collimation
  • Plug-in emitter module
  • Enhanced high-stability cooling
  • Cross-contamination shielding
  • Rugged design

Specifications:

Feature Specifications
Operating Below 5 x 10-5?Torr is desirable for best operation
Beam Voltage 4,000 VDC
Beam Current 0–750 mA
continuously variable
Maximum Power 3 kW
Cooling Water 1.5 gpm
Pressure Differential 25 psi minimum
Maximum Bakeout
Temperature
230°C (446°F)
Crucible Volume 2.24 cc
