TURNKEY VACUUM MASS SPECTROMETER SYSTEMS

The MD-490M is a turnkey vacuum mass spectrometer system characterized by ease of maintenance and adaptability to system use. The instrument uses the most sensitive and accurate method of leak detection: the helium mass spectrometer.

It also meets the stringent requirements for robustness, reliability and ease of maintenance that are essential in any industrial environment..

MD-490M的特點是易于維護和適應系統使用。該儀器使用最靈敏、最準確的泄漏檢測方法：氦質譜儀。

它還滿足在任何工業環境中都至關重要的堅固性、可靠性和易于維護的嚴格要求。



MD-490M:?APPLICATIONS

  • AUTOMOTIVE

    • Exhaust System
    • Cooling Circuit
    • Engine
    • Battery
    • Oil Pan

  • AIR CONDITIONING

    • Condenser Coils
    • Evaporator Coils
    • Compressor Seals
    • Refrigerant Tubing
    • Valve and Joint

  • MEDICAL

    • IV Bag
    • Implantable Device
    • Syringe and Vial
    • Medical Pouch
    • Packaging

  • NUCLEAR

    • Fuel Rod
    • Coolant System
    • Containment Vessel
    • Storage Container
    • Glove Box

  • AEROSPACE

    • Fuel System
    • Hydraulic System
    • Oxygen System
    • Pressurized Cabin
    • Cooling System



MD-490M:?FEATURES

Performance

  • Sensitivity: System Mode, minimum detectable helium leak rate 2.5 x 10-9?atm-cc/sec.
    Sniffer Mode, minimum detectable helium leak rate 2.5 x 10-7?atm- cc/sec.
  • Response Time: < 1.0 second system mode testing, < 1.5 seconds sniffer mode testing.
  • Startup Time: One button automatic operation.
    Cold Start-Up, less than 3 minutes.
    Standby Start-Up, less than 1 minute

Display Leak Rate Range

  • System Mode Testing: 0-10 Volts output to main PLC. Leak rate configured to systems calibrated gas leak.

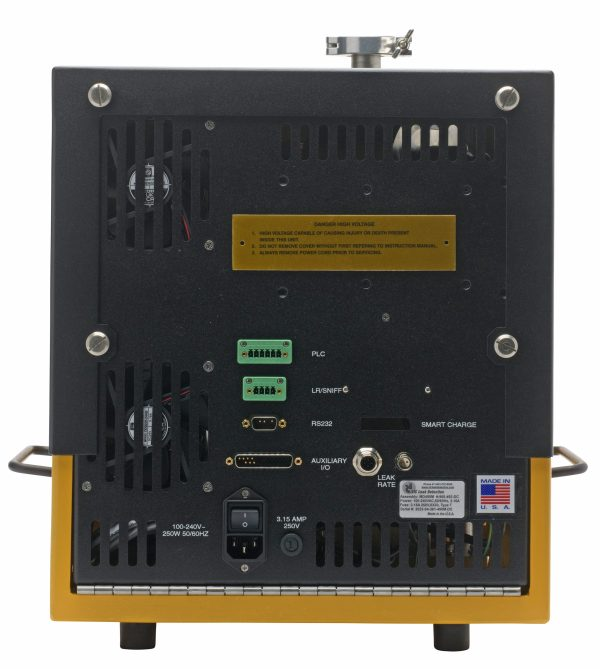

  • Interface Signals: Auto-Zero, Ready, Leak Rate and Fault Signals.
  • Sniffer Mode Testing: 10-3?to 10-7?atm-cc/sec He direct-reading.

Main Features

  • Cold Start-Up, less than 3 minutes
  • Standby Start-Up, less than 1 minute
  • One button automatic operation
  • Hard vacuum leak detection system

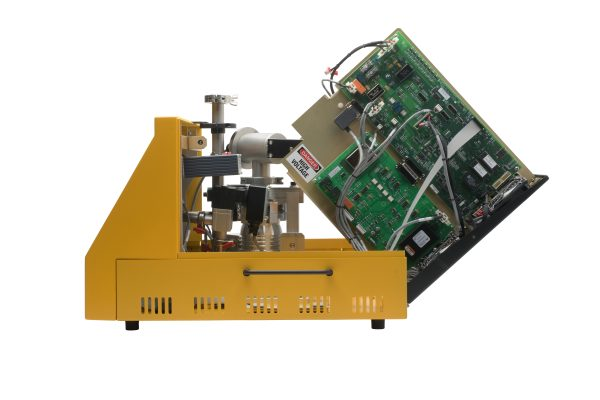

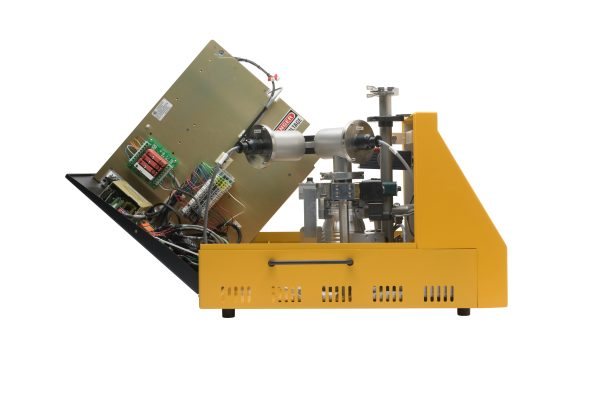

  • Modular assembly for custom arrangement
  • PLC controlled
  • Turn-key operation
  • Front panel key lock-out
  • Turbo speed adjustable from 600 to 1500HZ
  • Five year warranty on major components
  • Includes an internal fast clean-up sniffer manifold
  • Allows rapid switching between sniff and vacuum testing modes
  • Auto peak cycle
MD-490M:?CHARACTERISTICS

Options

  • 24Vdc control
  • 110Vdc control
  • Atmospheric sniffer module
  • Side mount configuration
  • Bottom mount configuration
  • Electrical Converter Box
Technical Specifications
Power115/220 Volts AC, 60/50 Hz, 4 Amps
(other voltages available upon request)
DimensionsDimensions (in mm)
W344*H395*D618
ValveHigh vacuum rated solenoid actuated fore-line isolation
Pressure MeasurementConnection gage for rough vacuum (atm-10-3?Torr),Turbo pump speed characteristics for high vacuum (10-6?Torr)
Inlet SystemExternal PLC controlled valves, externally mounted. Options: DC or AC
High Vacuum Pump53 c/second air-cooled turbo-molecular
Mechanical PumpExternal forepump arrangement, standard package with 7 CFM
