Tracer Gas Leak Detectors 示蹤氣體泄漏探測器 MD-490S – DUAL GAS 氦/氫泄漏檢測器

Tracer Gas Leak Detectors 示蹤氣體泄漏探測器 MD-490S – DUAL GAS 氦/氫泄漏檢測器

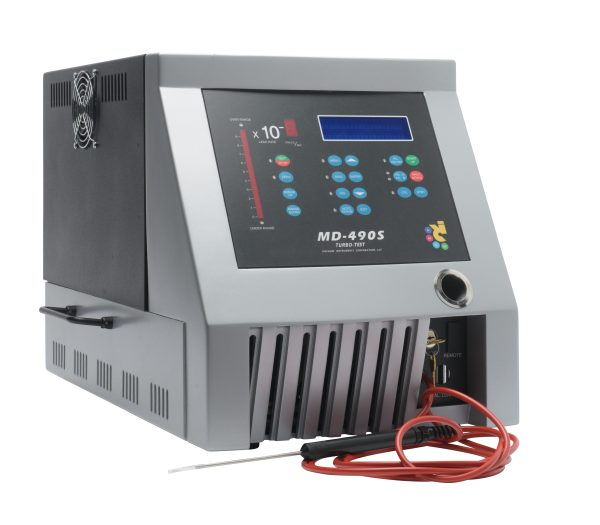

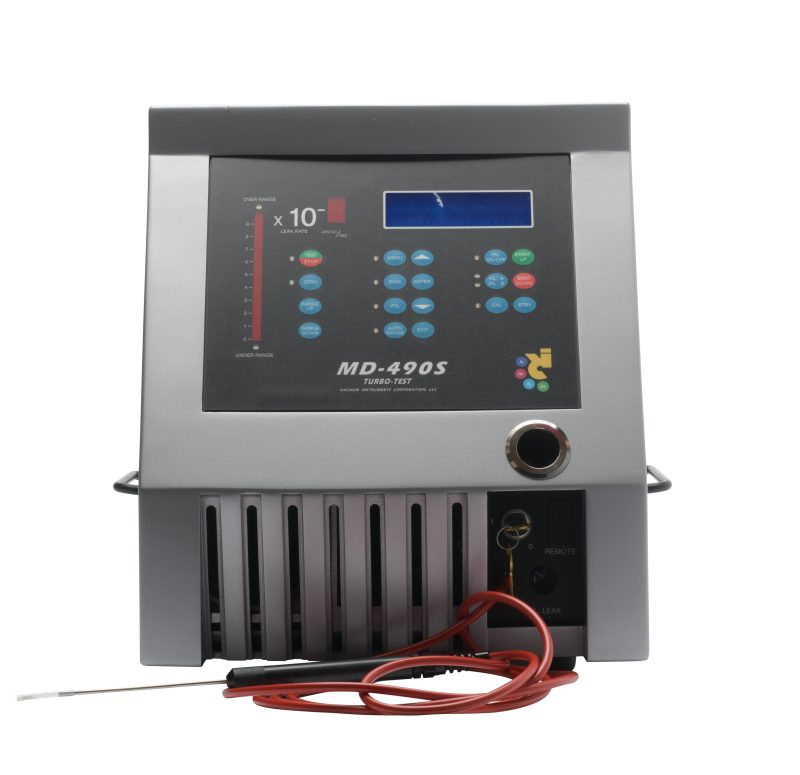

MD-490S Dual Gas是專為工業環境設計的最先進的氦氣/氫氣檢漏儀。MD-490S Dual Gas利用VIC自己的工業級質譜儀實現最高靈敏度、最快響應時間和最小占地面積。

只需按下一個按鈕，這種雙氣體裝置就可以檢測氦氣或氫氣示蹤氣體，同時使用一個內置的雙用途校準氣體泄漏。

它還滿足在任何工業環境中都至關重要的堅固性、可靠性和易于維護的嚴格要求。

MD-490S DUAL GAS:?APPLICATIONS? 應用

  • AUTOMOTIVE

    • Exhaust System
    • Cooling Circuit
    • Engine
    • Battery
    • Oil Pan

  • AIR CONDITIONING

    • Condenser Coils
    • Evaporator Coils
    • Compressor Seals
    • Refrigerant Tubing
    • Valve and Joint

  • MEDICAL

    • IV Bag
    • Implantable Device
    • Syringe and Vial
    • Medical Pouch
    • Packaging

  • NUCLEAR

    • Fuel Rod
    • Coolant System
    • Containment Vessel
    • Storage Container
    • Glove Box

  • AEROSPACE

    • Fuel System
    • Hydraulic System
    • Oxygen System
    • Pressurized Cabin
    • Cooling System
    MD-490S DUAL GAS:?FEATURES? 功能

    Main Features

    • Fastest response time in the industry (less than 0.5 seconds)
    • Tracer gas background suppression
    • Sensitivity to 5 x 10-8?atm cc/secs
    • Less than 3 minutes total start-up time
    • Fully automatic calibration sequence with built-in dual purpose gas leak
    • User selectable between helium and hydrogen sniffer
    • Front panel key lock-out
    • Sealed membrane keypad
    • Fully interactive system diagnostics with multilingual displays
    • High output (110dB) adjustable audio alarm

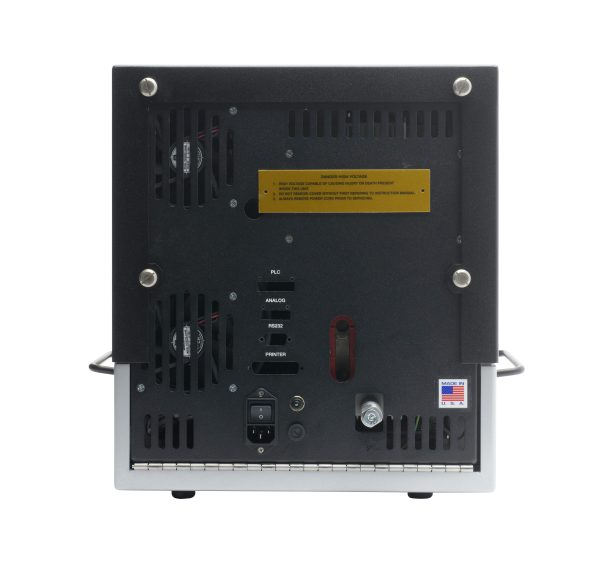

    Flexible Communication Format

    • Option Full duplex RS232 communication
    • Option AC & DC PLC interfacing
    • Option Analog outputs
    • Option Data Link Software



    MD-490S DUAL GAS:?SPECIFICATIONS & OPTIONS

    Options

    • VIC exclusive Vibrated-Probe w/built-in Auto Zero switch
    • Remote Display
    • Carrying Case
    • Portable Cart

    Accessories

    • Smart Charge 5, Gas Handling Unit
    • Test Booths and Fixturing
    • Multi-point probes
    • Robotic Sniffing
    • Leak calibrator
    • Master leak
    • Connectors…
    TECHNICAL SPECIFICATIONS
    Weight31.8 kg / 70 lbs
    Dimensions(WxHxD) 344x395x618 mm
    Electrical Supply115/220 VAC, 60/50 Hz

    6/3 Amps; CE Compliant

    TemperatureOperating: +00C to +460C

    Storage: 00C to +600C
