Wiremax采用FEP絕緣制造的高壓PTFE絕緣電線提供以下功能：

氟化乙烯丙烯（FEP）提供了一種出色的性能組合，包括：優異的介電性能、在寬頻率范圍內的低介電常數、包括變壓器油和介電流體在內的化學惰性、在400°F（204°C）下使用后保持性能的耐熱性、韌性、靈活性，具有非常高的應力抗裂性、低摩擦系數、低可燃性、可忽略的吸濕性、長期耐候性以及對臭氧陽光和天氣的優異抵抗力。FEP提供了所有熱塑性塑料中折射率最低的低光反射（與水相同）。

應用

• TWT
• 激光系統
• CRT顯示器
• 軍事與太空
• 工業和醫療
• 電源

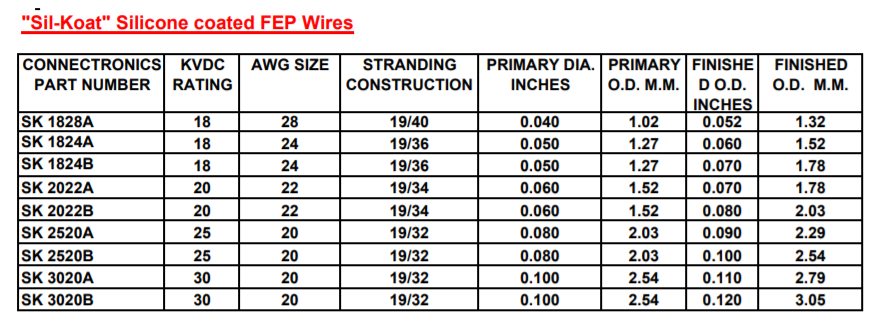

SK 1828A-0

Black 1.32 Millimeter (mm) SIL-KOAT Silicone Coated FEP Wire

18?kV

28?AWG

19/32

Black

0.040?in

1.32?mm 0.052?in

“SIL-KOAT” Insulation High Temperature -55oC thru 200oC High Voltage 1 KVDC thru 30 KVDC 28 AWG thru 20 AWG conductors High Flexibility Silicone coating provides a bond ready jacket compatible with potting materials and adhesives Small Diameter Nomex Braid offered for abrasive applications Reference: MIL-W-22759 Ozone and Corona Resistant

SK 1828A-1

Brown 1.32 Millimeter (mm) SIL-KOAT Silicone Coated FEP Wire

18?kV

28?AWG

19/32

Brown

0.040?in

1.32?mm 0.052?in

“SIL-KOAT” Insulation High Temperature -55oC thru 200oC High Voltage 1 KVDC thru 30 KVDC 28 AWG thru 20 AWG conductors High Flexibility Silicone coating provides a bond ready jacket compatible with potting materials and adhesives Small Diameter Nomex Braid offered for abrasive applications Reference: MIL-W-22759 Ozone and Corona Resistant

SK 1828A-2

Red 1.32 Millimeter (mm) SIL-KOAT Silicone Coated FEP Wire

18?kV

28?AWG

19/32

Red

0.040?in

1.32?mm 0.052?in

“SIL-KOAT” Insulation High Temperature -55oC thru 200oC High Voltage 1 KVDC thru 30 KVDC 28 AWG thru 20 AWG conductors High Flexibility Silicone coating provides a bond ready jacket compatible with potting materials and adhesives Small Diameter Nomex Braid offered for abrasive applications Reference: MIL-W-22759 Ozone and Corona Resistant

SK 1828A-3

Orange 1.32 Millimeter (mm) SIL-KOAT Silicone Coated FEP Wire

18?kV

28?AWG

19/32

Orange

0.040?in

1.32?mm 0.052?in

“SIL-KOAT” Insulation High Temperature -55oC thru 200oC High Voltage 1 KVDC thru 30 KVDC 28 AWG thru 20 AWG conductors High Flexibility Silicone coating provides a bond ready jacket compatible with potting materials and adhesives Small Diameter Nomex Braid offered for abrasive applications Reference: MIL-W-22759 Ozone and Corona Resistant

SK 1828A-4

Yellow 1.32 Millimeter (mm) SIL-KOAT Silicone Coated FEP Wire

18?kV

28?AWG

19/32

Yellow

0.040?in

1.32?mm 0.052?in

“SIL-KOAT” Insulation High Temperature -55oC thru 200oC High Voltage 1 KVDC thru 30 KVDC 28 AWG thru 20 AWG conductors High Flexibility Silicone coating provides a bond ready jacket compatible with potting materials and adhesives Small Diameter Nomex Braid offered for abrasive applications Reference: MIL-W-22759 Ozone and Corona Resistant

SK 1828A-5

Green 1.32 Millimeter (mm) SIL-KOAT Silicone Coated FEP Wire

18?kV

28?AWG

19/32

Green

0.040?in

1.32?mm 0.052?in

“SIL-KOAT” Insulation High Temperature -55oC thru 200oC High Voltage 1 KVDC thru 30 KVDC 28 AWG thru 20 AWG conductors High Flexibility Silicone coating provides a bond ready jacket compatible with potting materials and adhesives Small Diameter Nomex Braid offered for abrasive applications Reference: MIL-W-22759 Ozone and Corona Resistant

SK 1828A-6

Blue 1.32 Millimeter (mm) SIL-KOAT Silicone Coated FEP Wire

18?kV

28?AWG

19/32

Blue

0.040?in

1.32?mm 0.052?in

“SIL-KOAT” Insulation High Temperature -55oC thru 200oC High Voltage 1 KVDC thru 30 KVDC 28 AWG thru 20 AWG conductors High Flexibility Silicone coating provides a bond ready jacket compatible with potting materials and adhesives Small Diameter Nomex Braid offered for abrasive applications Reference: MIL-W-22759 Ozone and Corona Resistant

SK 1828A-7

Violet 1.32 Millimeter (mm) SIL-KOAT Silicone Coated FEP Wire

18?kV

28?AWG

19/32

Violet

0.040?in

1.32?mm 0.052?in

“SIL-KOAT” Insulation High Temperature -55oC thru 200oC High Voltage 1 KVDC thru 30 KVDC 28 AWG thru 20 AWG conductors High Flexibility Silicone coating provides a bond ready jacket compatible with potting materials and adhesives Small Diameter Nomex Braid offered for abrasive applications Reference: MIL-W-22759 Ozone and Corona Resistant

SK 1828A-8

Gray 1.32 Millimeter (mm) SIL-KOAT Silicone Coated FEP Wire

18?kV

28?AWG

19/32

Gray

0.040?in

1.32?mm 0.052?in

“SIL-KOAT” Insulation High Temperature -55oC thru 200oC High Voltage 1 KVDC thru 30 KVDC 28 AWG thru 20 AWG conductors High Flexibility Silicone coating provides a bond ready jacket compatible with potting materials and adhesives Small Diameter Nomex Braid offered for abrasive applications Reference: MIL-W-22759 Ozone and Corona Resistant

SK 1828A-9

White 1.32 Millimeter (mm) SIL-KOAT Silicone Coated FEP Wire

18?kV

28?AWG

19/32

White

0.040?in

1.32?mm 0.052?in

“SIL-KOAT” Insulation High Temperature -55oC thru 200oC High Voltage 1 KVDC thru 30 KVDC 28 AWG thru 20 AWG conductors High Flexibility Silicone coating provides a bond ready jacket compatible with potting materials and adhesives Small Diameter Nomex Braid offered for abrasive applications Reference: MIL-W-22759 Ozone and Corona Resistant

SK 1824A-0

Black 1.52 Millimeter (mm) SIL-KOAT Silicone Coated FEP Wire

18?kV

24?AWG

19/36

Black

0.050?in

1.52?mm 0.060?in

“SIL-KOAT” Insulation High Temperature -55oC thru 200oC High Voltage 1 KVDC thru 30 KVDC 28 AWG thru 20 AWG conductors High Flexibility Silicone coating provides a bond ready jacket compatible with potting materials and adhesives Small Diameter Nomex Braid offered for abrasive applications Reference: MIL-W-22759 Ozone and Corona Resistant

SK 1824A-1

Brown 1.52 Millimeter (mm) SIL-KOAT Silicone Coated FEP Wire

18?kV

24?AWG

19/36

Brown

0.050?in

1.52?mm 0.060?in

“SIL-KOAT” Insulation High Temperature -55oC thru 200oC High Voltage 1 KVDC thru 30 KVDC 28 AWG thru 20 AWG conductors High Flexibility Silicone coating provides a bond ready jacket compatible with potting materials and adhesives Small Diameter Nomex Braid offered for abrasive applications Reference: MIL-W-22759 Ozone and Corona Resistant

SK 1824A-2

Red 1.52 Millimeter (mm) SIL-KOAT Silicone Coated FEP Wire

18?kV

24?AWG

19/36

Red

0.050?in

1.52?mm 0.060?in

“SIL-KOAT” Insulation High Temperature -55oC thru 200oC High Voltage 1 KVDC thru 30 KVDC 28 AWG thru 20 AWG conductors High Flexibility Silicone coating provides a bond ready jacket compatible with potting materials and adhesives Small Diameter Nomex Braid offered for abrasive applications Reference: MIL-W-22759 Ozone and Corona Resistant

SK 1824A-3

Orange 1.52 Millimeter (mm) SIL-KOAT Silicone Coated FEP Wire

18?kV

24?AWG

19/36

Orange

0.050?in

1.52?mm 0.060?in

“SIL-KOAT” Insulation High Temperature -55oC thru 200oC High Voltage 1 KVDC thru 30 KVDC 28 AWG thru 20 AWG conductors High Flexibility Silicone coating provides a bond ready jacket compatible with potting materials and adhesives Small Diameter Nomex Braid offered for abrasive applications Reference: MIL-W-22759 Ozone and Corona Resistant

SK 1824A-4

Yellow 1.52 Millimeter (mm) SIL-KOAT Silicone Coated FEP Wire

18?kV

24?AWG

19/36

Yellow

0.050?in

1.52?mm 0.060?in

“SIL-KOAT” Insulation High Temperature -55oC thru 200oC High Voltage 1 KVDC thru 30 KVDC 28 AWG thru 20 AWG conductors High Flexibility Silicone coating provides a bond ready jacket compatible with potting materials and adhesives Small Diameter Nomex Braid offered for abrasive applications Reference: MIL-W-22759 Ozone and Corona Resistant

SK 1824A-5

Green 1.52 Millimeter (mm) SIL-KOAT Silicone Coated FEP Wire

18?kV

24?AWG

19/36

Green

0.050?in

1.52?mm 0.060?in

“SIL-KOAT” Insulation High Temperature -55oC thru 200oC High Voltage 1 KVDC thru 30 KVDC 28 AWG thru 20 AWG conductors High Flexibility Silicone coating provides a bond ready jacket compatible with potting materials and adhesives Small Diameter Nomex Braid offered for abrasive applications Reference: MIL-W-22759 Ozone and Corona Resistant

SK 1824A-6

Blue 1.52 Millimeter (mm) SIL-KOAT Silicone Coated FEP Wire

18?kV

24?AWG

19/36

Blue

0.050?in

1.52?mm 0.060?in

“SIL-KOAT” Insulation High Temperature -55oC thru 200oC High Voltage 1 KVDC thru 30 KVDC 28 AWG thru 20 AWG conductors High Flexibility Silicone coating provides a bond ready jacket compatible with potting materials and adhesives Small Diameter Nomex Braid offered for abrasive applications Reference: MIL-W-22759 Ozone and Corona Resistant

SK 1824A-7

Violet 1.52 Millimeter (mm) SIL-KOAT Silicone Coated FEP Wire

18?kV

24?AWG

19/36

Violet

0.050?in

1.52?mm 0.060?in

“SIL-KOAT” Insulation High Temperature -55oC thru 200oC High Voltage 1 KVDC thru 30 KVDC 28 AWG thru 20 AWG conductors High Flexibility Silicone coating provides a bond ready jacket compatible with potting materials and adhesives Small Diameter Nomex Braid offered for abrasive applications Reference: MIL-W-22759 Ozone and Corona Resistant

SK 1824A-8

Gray 1.52 Millimeter (mm) SIL-KOAT Silicone Coated FEP Wire

18?kV

24?AWG

19/36

Gray

0.050?in

1.52?mm 0.060?in

“SIL-KOAT” Insulation High Temperature -55oC thru 200oC High Voltage 1 KVDC thru 30 KVDC 28 AWG thru 20 AWG conductors High Flexibility Silicone coating provides a bond ready jacket compatible with potting materials and adhesives Small Diameter Nomex Braid offered for abrasive applications Reference: MIL-W-22759 Ozone and Corona Resistant

SK 1824A-9

White 1.52 Millimeter (mm) SIL-KOAT Silicone Coated FEP Wire

18?kV

24?AWG

19/36

White

0.050?in

1.52?mm 0.060?in

“SIL-KOAT” Insulation High Temperature -55oC thru 200oC High Voltage 1 KVDC thru 30 KVDC 28 AWG thru 20 AWG conductors High Flexibility Silicone coating provides a bond ready jacket compatible with potting materials and adhesives Small Diameter Nomex Braid offered for abrasive applications Reference: MIL-W-22759 Ozone and Corona Resistant

SK 1824B-0

Black 1.78 Millimeter (mm) SIL-KOAT Silicone Coated FEP Wire

18?kV

24?AWG

19/36

Black

0.050?in

1.78?mm 0.070?in

“SIL-KOAT” Insulation High Temperature -55oC thru 200oC High Voltage 1 KVDC thru 30 KVDC 28 AWG thru 20 AWG conductors High Flexibility Silicone coating provides a bond ready jacket compatible with potting materials and adhesives Small Diameter Nomex Braid offered for abrasive applications Reference: MIL-W-22759 Ozone and Corona Resistant

SK 1824B-1

Brown 1.78 Millimeter (mm) SIL-KOAT Silicone Coated FEP Wire

18?kV

24?AWG

19/36

Brown

0.050?in

1.78?mm 0.070?in

“SIL-KOAT” Insulation High Temperature -55oC thru 200oC High Voltage 1 KVDC thru 30 KVDC 28 AWG thru 20 AWG conductors High Flexibility Silicone coating provides a bond ready jacket compatible with potting materials and adhesives Small Diameter Nomex Braid offered for abrasive applications Reference: MIL-W-22759 Ozone and Corona Resistant

SK 1824B-2

Red 1.78 Millimeter (mm) SIL-KOAT Silicone Coated FEP Wire

18?kV

24?AWG

19/36

Red

0.050?in

1.78?mm 0.070?in

“SIL-KOAT” Insulation High Temperature -55oC thru 200oC High Voltage 1 KVDC thru 30 KVDC 28 AWG thru 20 AWG conductors High Flexibility Silicone coating provides a bond ready jacket compatible with potting materials and adhesives Small Diameter Nomex Braid offered for abrasive applications Reference: MIL-W-22759 Ozone and Corona Resistant

SK 1824B-3

Orange 1.78 Millimeter (mm) SIL-KOAT Silicone Coated FEP Wire

18?kV

24?AWG

19/36

Orange

0.050?in

1.78?mm 0.070?in

“SIL-KOAT” Insulation High Temperature -55oC thru 200oC High Voltage 1 KVDC thru 30 KVDC 28 AWG thru 20 AWG conductors High Flexibility Silicone coating provides a bond ready jacket compatible with potting materials and adhesives Small Diameter Nomex Braid offered for abrasive applications Reference: MIL-W-22759 Ozone and Corona Resistant

SK 1824B-4

Yellow 1.78 Millimeter (mm) SIL-KOAT Silicone Coated FEP Wire

18?kV

24?AWG

19/36

Yellow

0.050?in

1.78?mm 0.070?in

“SIL-KOAT” Insulation High Temperature -55oC thru 200oC High Voltage 1 KVDC thru 30 KVDC 28 AWG thru 20 AWG conductors High Flexibility Silicone coating provides a bond ready jacket compatible with potting materials and adhesives Small Diameter Nomex Braid offered for abrasive applications Reference: MIL-W-22759 Ozone and Corona Resistant
