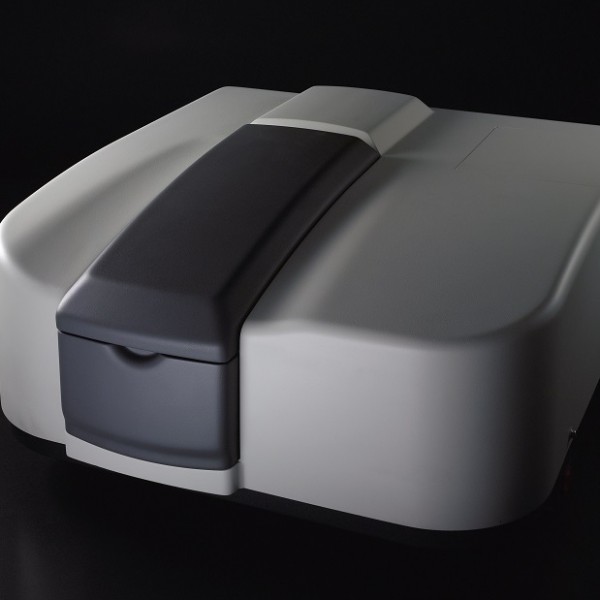

T92+ Spectrophotometer 分光度計

The T92+ wavelength range is 190–900nm and the instrument has a User Defined Variable Bandpass from 0.1nm – 5.0nm. The photo metric range is -4 to +4 Abs.

T92波長范圍為190~900 nm,儀器具有用戶定義的0.1nm~5.0nm的可變帶通。攝影測量范圍是-4到4 Abs

具有全息光柵的Czerny-Turner單色器使雜散光保持最小并提供極好的光學分辨率。

光電倍增管作為檢測器的使用提供了卓越的靈敏度

T92的真雙光束光學系統與高效且成熟可靠的電子控制系統相耦合,確保了高穩(wěn)定性和低背景噪聲

Optical SystemCzerny-Turner Monochromator with high resolution grating
Spectral Band width0.1 – 5nm user definable in steps of 0.1nm
Working ModePC Mode with USB connection.
Software SupportUV/Win-Pro Software
Wavelength range190 – 900nm
Wavelength Accuracy± 0.3nm (Automatic Wavelength Correction)
Wavelength Reproducibility0.1nm
Light SourceAutomatic interchange (selectable within the working range of light source)
Stray Light≤ 0.01% T (220nm)
Photometric modeTransmission, Absorption, Reflectance, Energy & Concentration
Photometric Range-4.0 to 4.0 Abs
Photometric Accuracy± 0.002Abs (0-0.5A)± 0.004Abs (0.5 -1.0A)

± 0.3%T (0-100%T)

Photometric Reproducibility0.001Abs (0 – 0.5A)
Baseline Flatness± 0.001Abs
Baseline Stability0.0004Abs/Hr (500nm, after pre heat)
Photometric Noise± 0.001Abs (500nm,0Abs, 2nm Spectral Bandwidth)
